Ballade Sports 00-09 Honda S2000 GT35 Titanium Turbo Kit

Our turbo kit has been upgraded to an all titanium piping kit as seen on IG. All of our R&D is complete.

Has been newly revised to fit all year model S2000s.

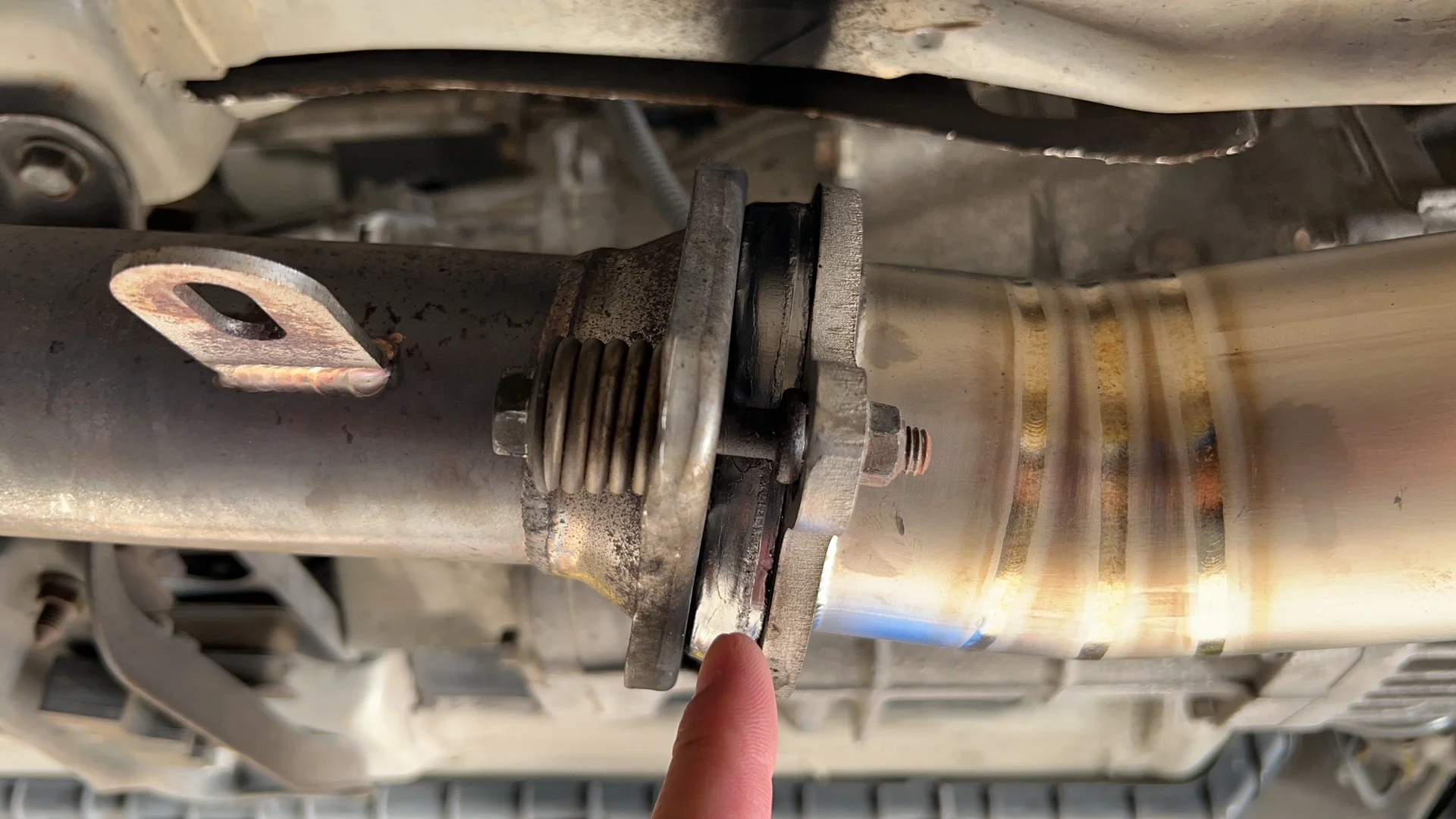

This is a fully bolt on kit. Fits to your stock catalytic converter. Does not require any welding, cutting, or modifying.

This has been dyno tested and proven to make great horsepower using the stock F20C or F22C engine. We've made 497hp & 325lb tq @14psi boost on a 166k mile S2000 AP1 2.0L engine 91 octane. Check our video below.

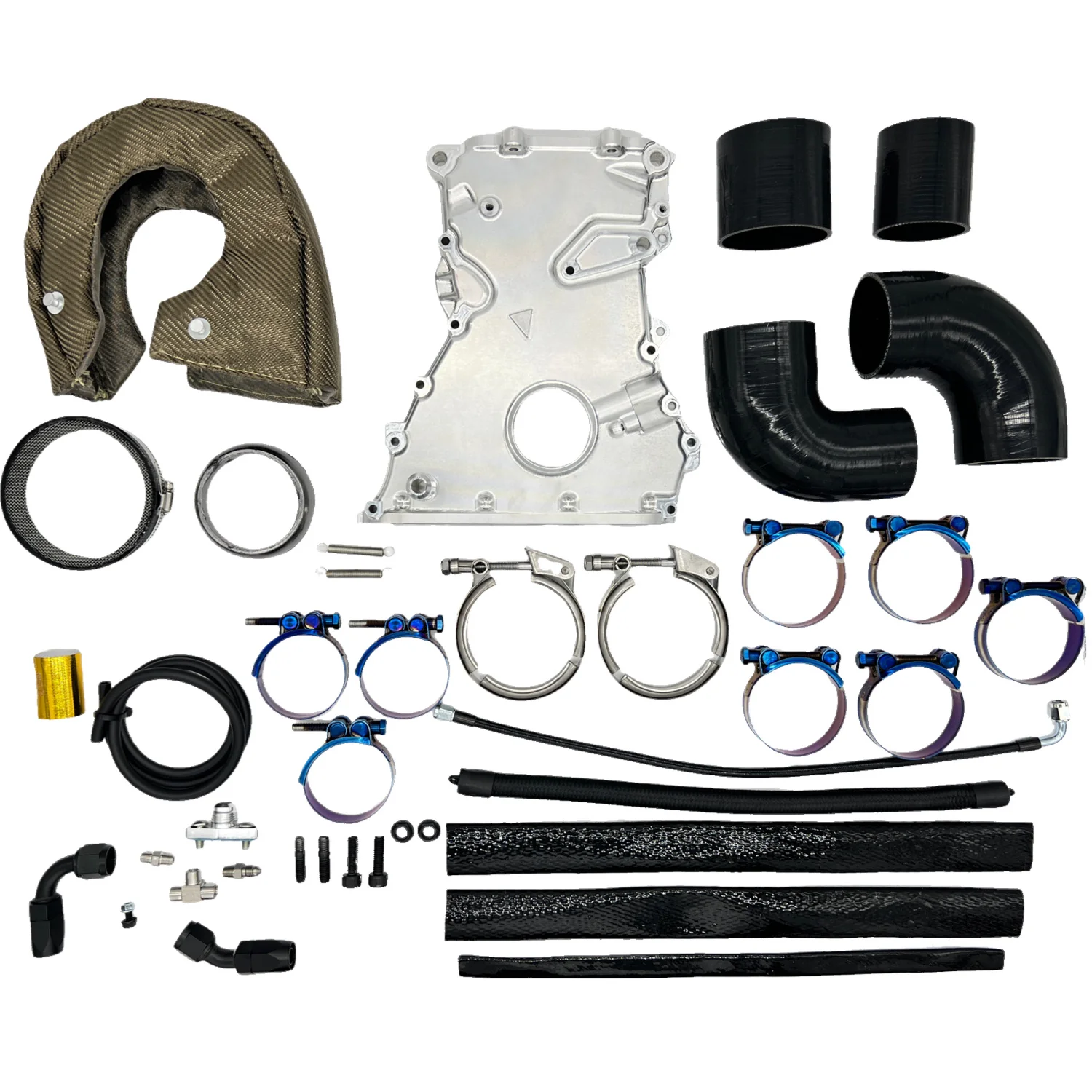

Included:

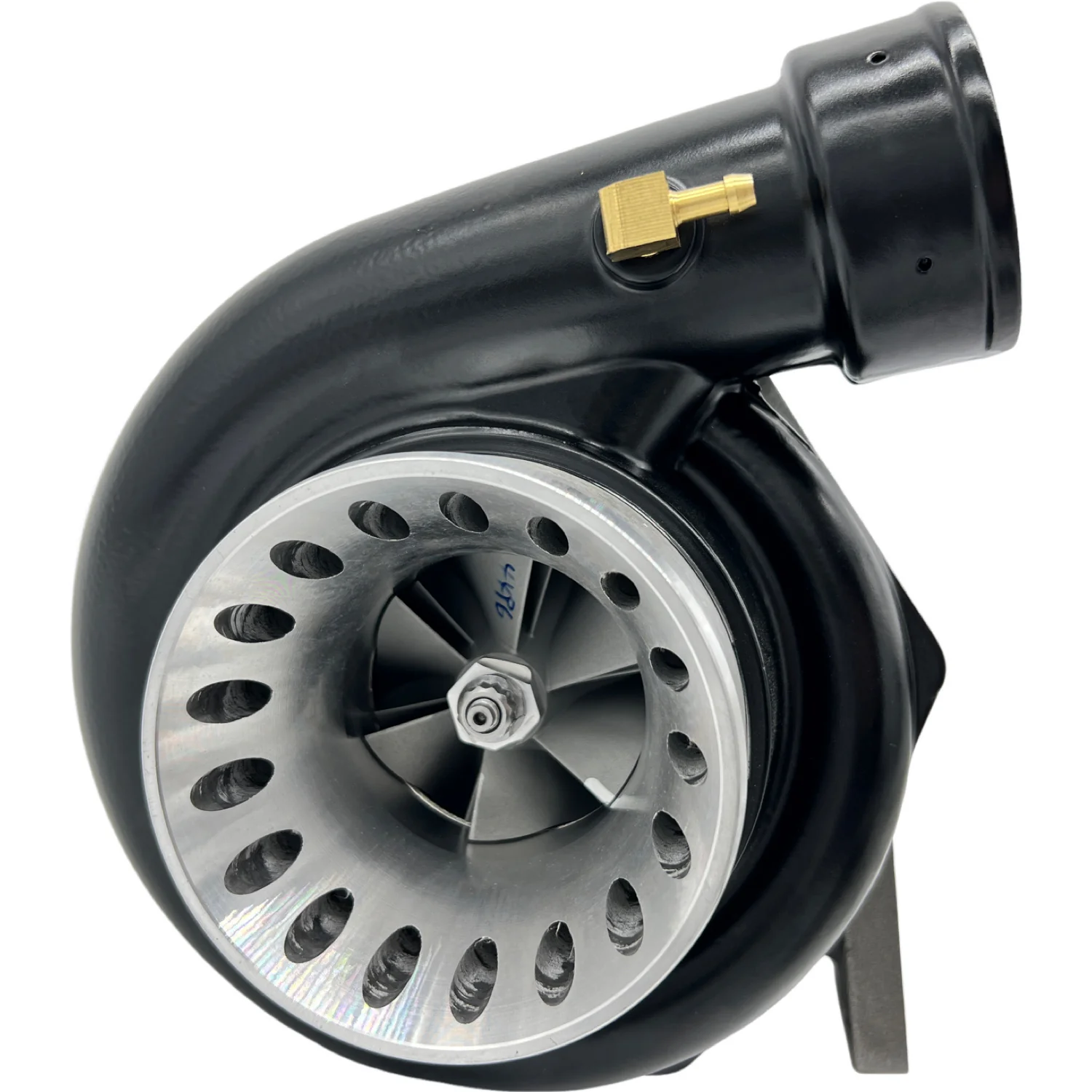

• Ballade Sports GT35 / T4 Size Ball Bearing Turbo (Black Coated Inlet)
• 321 Stainless Titanium Turbo Manifold
• TurboSmart Wastegate Hypergate 45

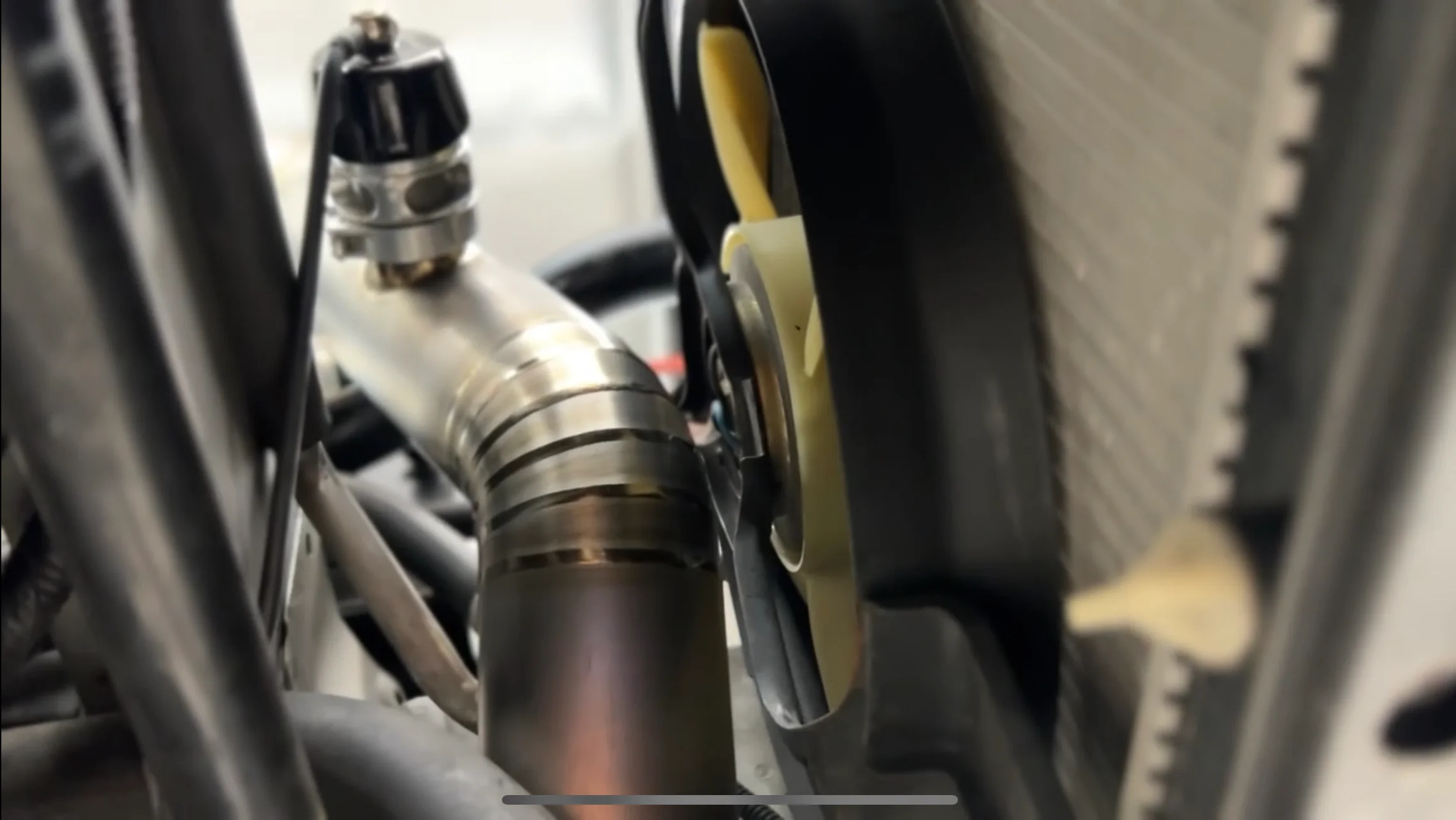

• TurboSmart Compact BlowOff Valve

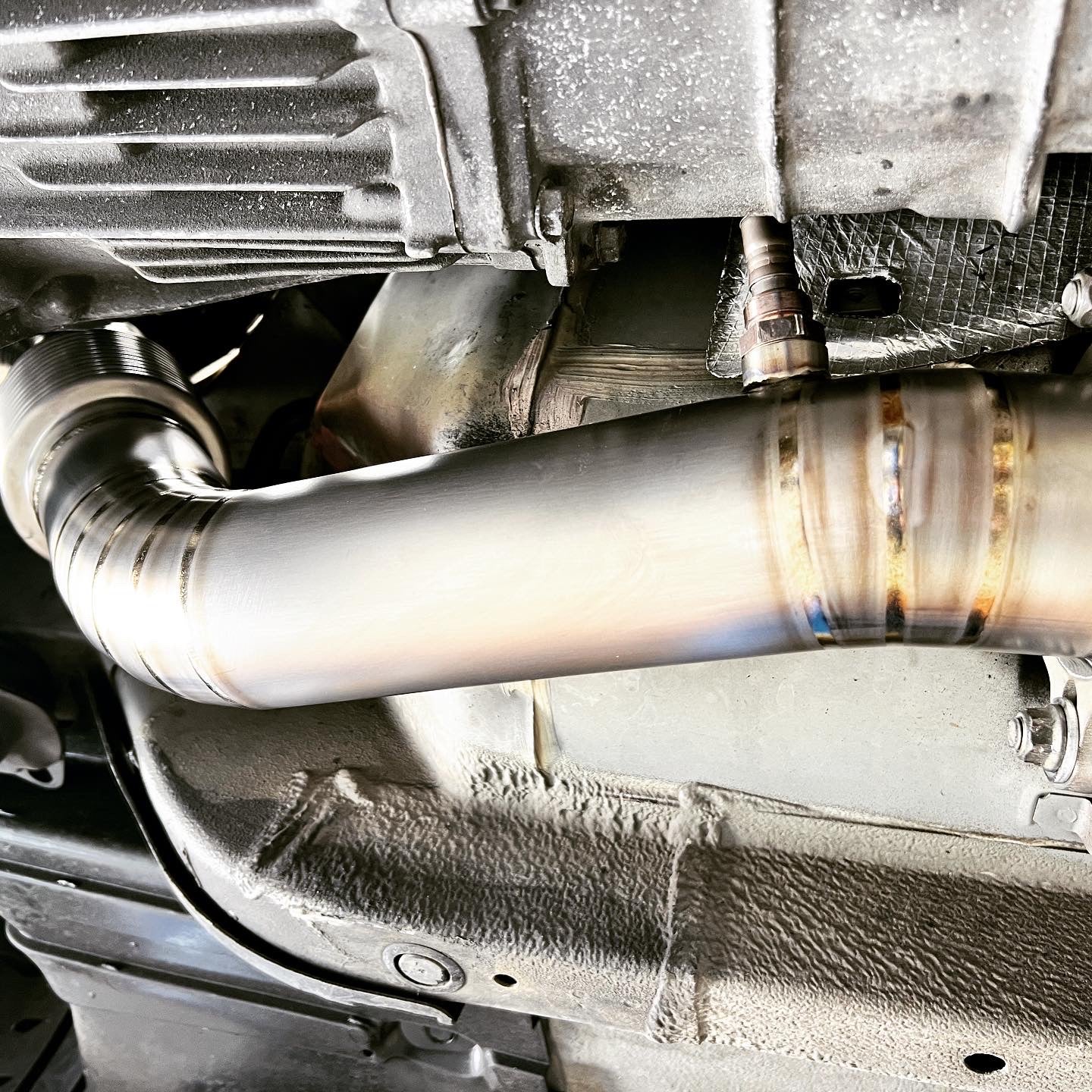

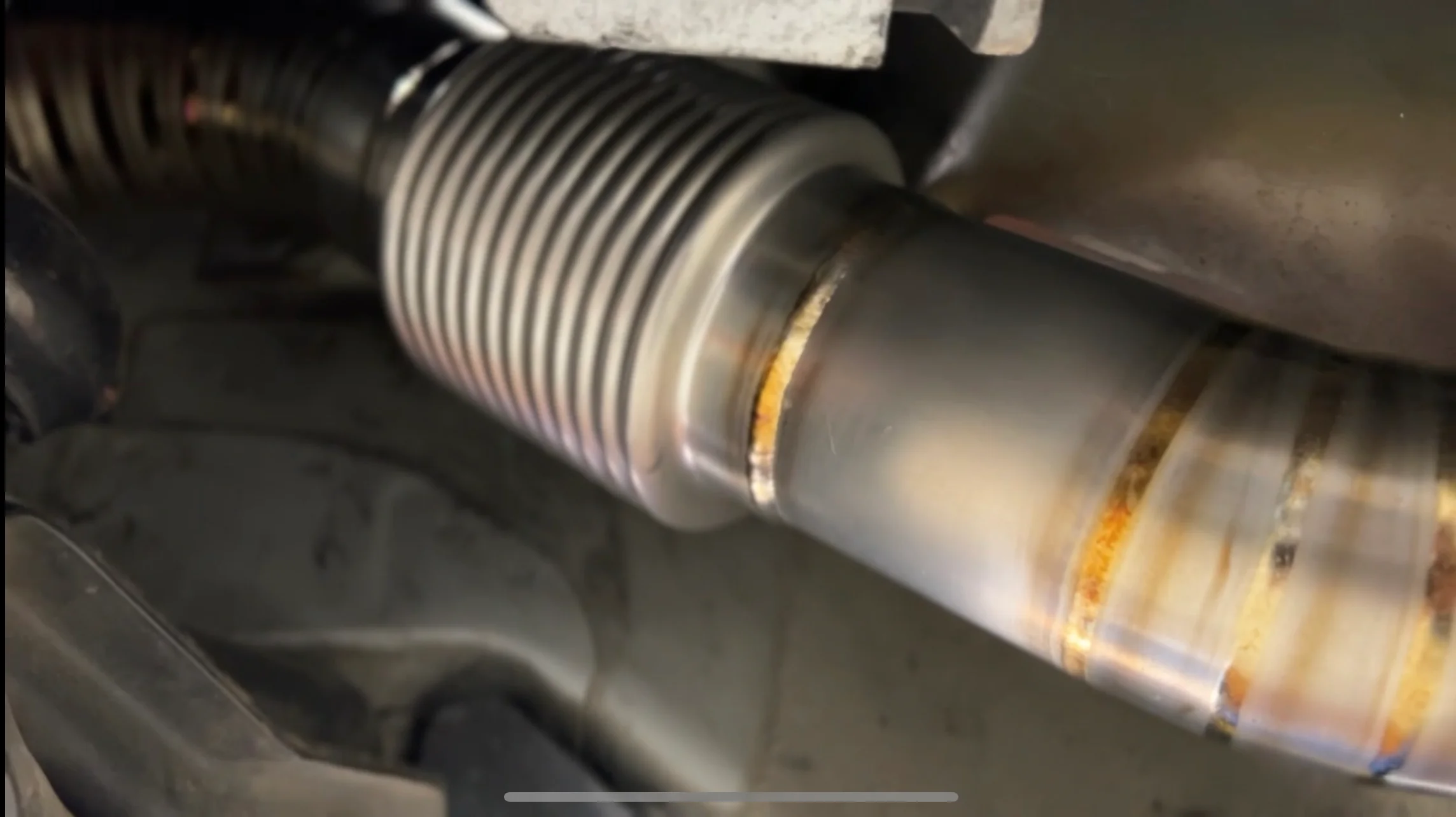

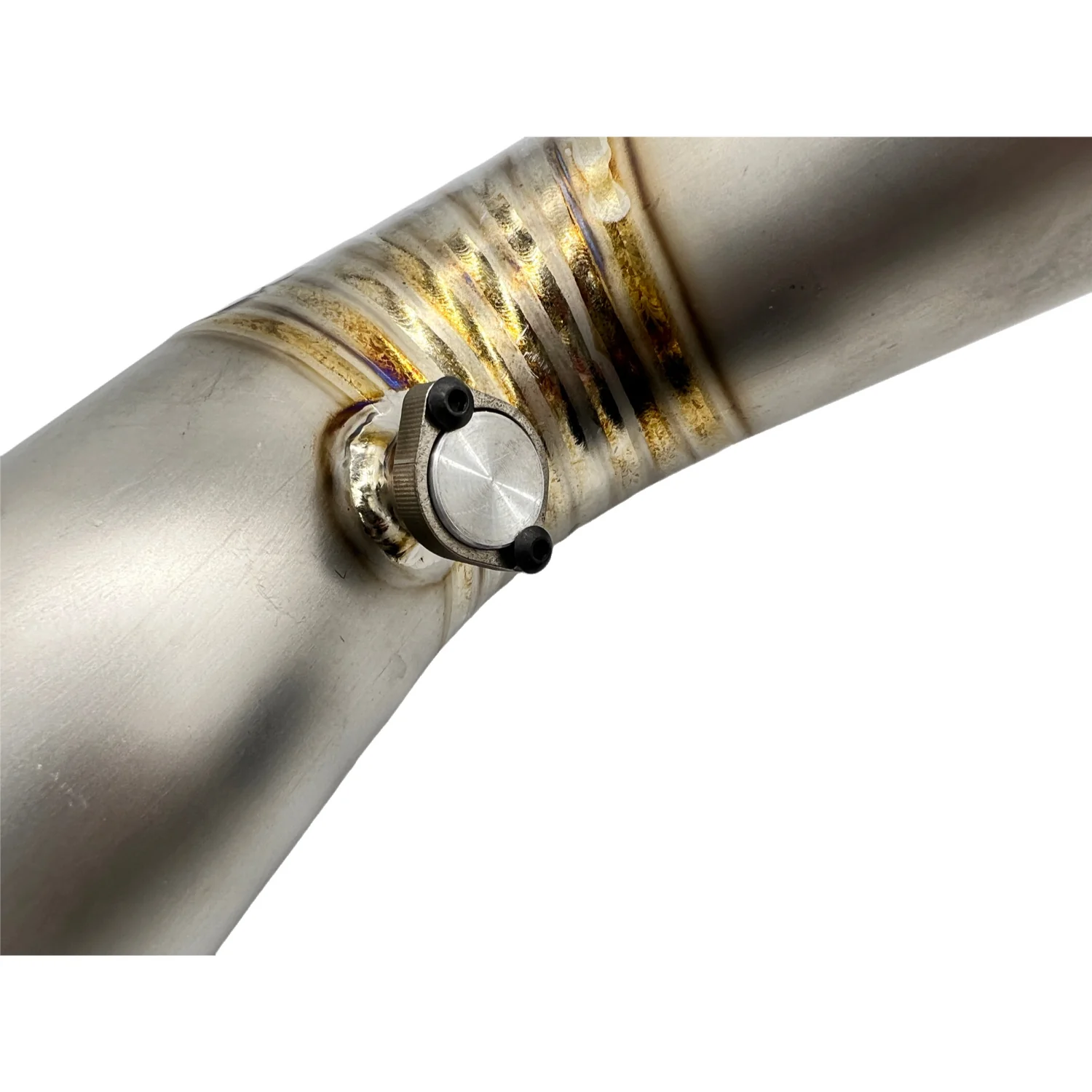

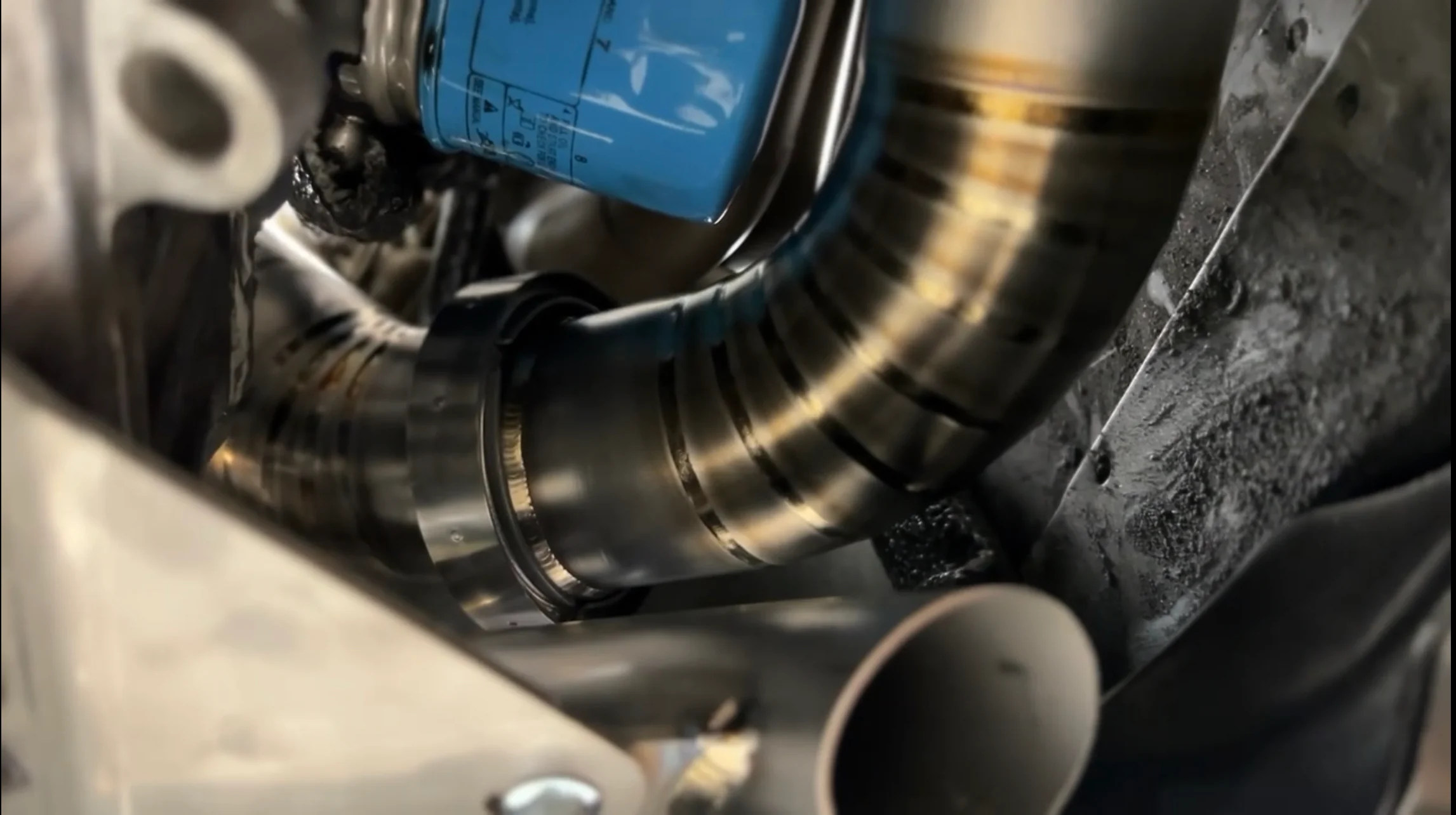

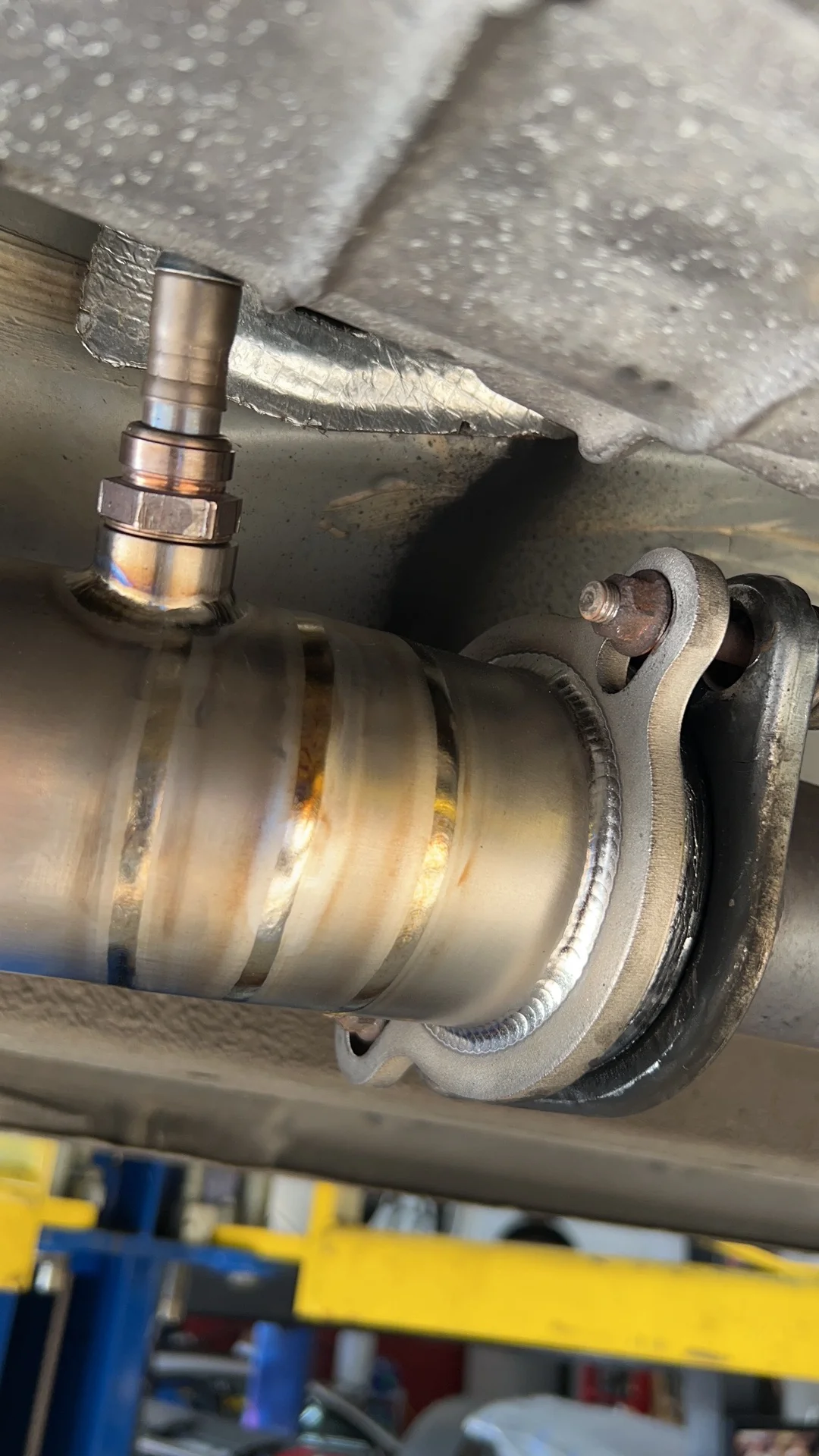

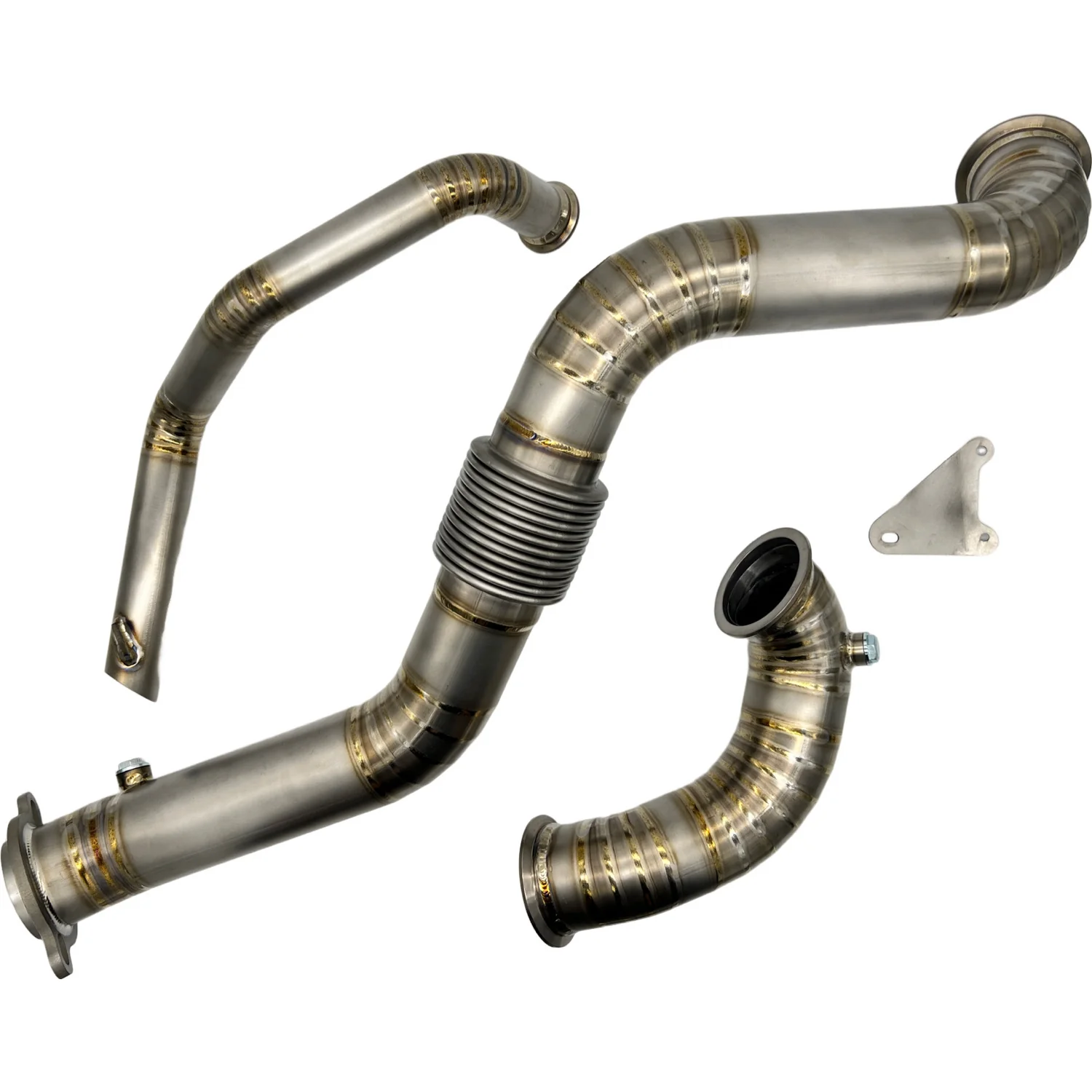

• All New - Titanium Pie Cut 2pc 3 inch Downpipe

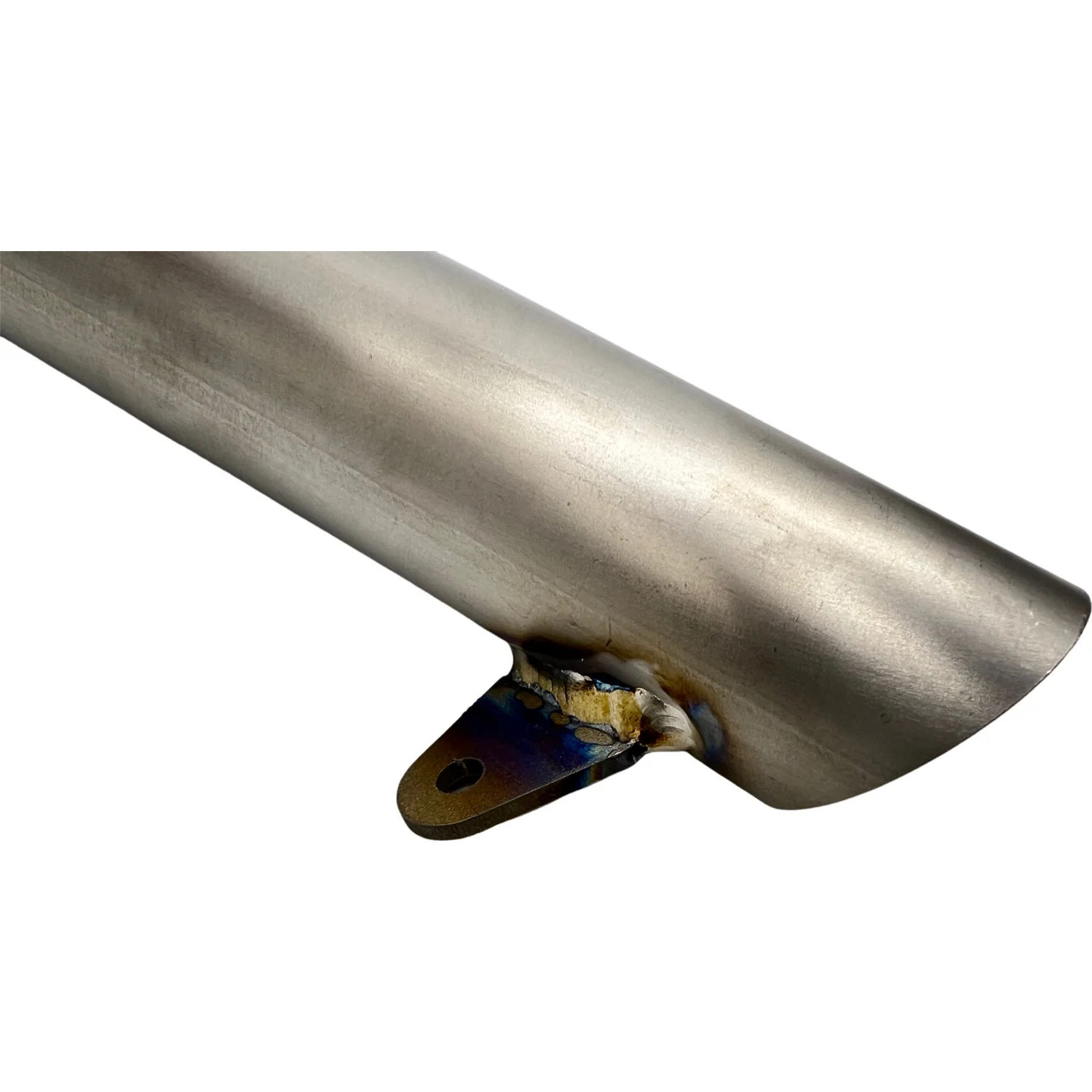

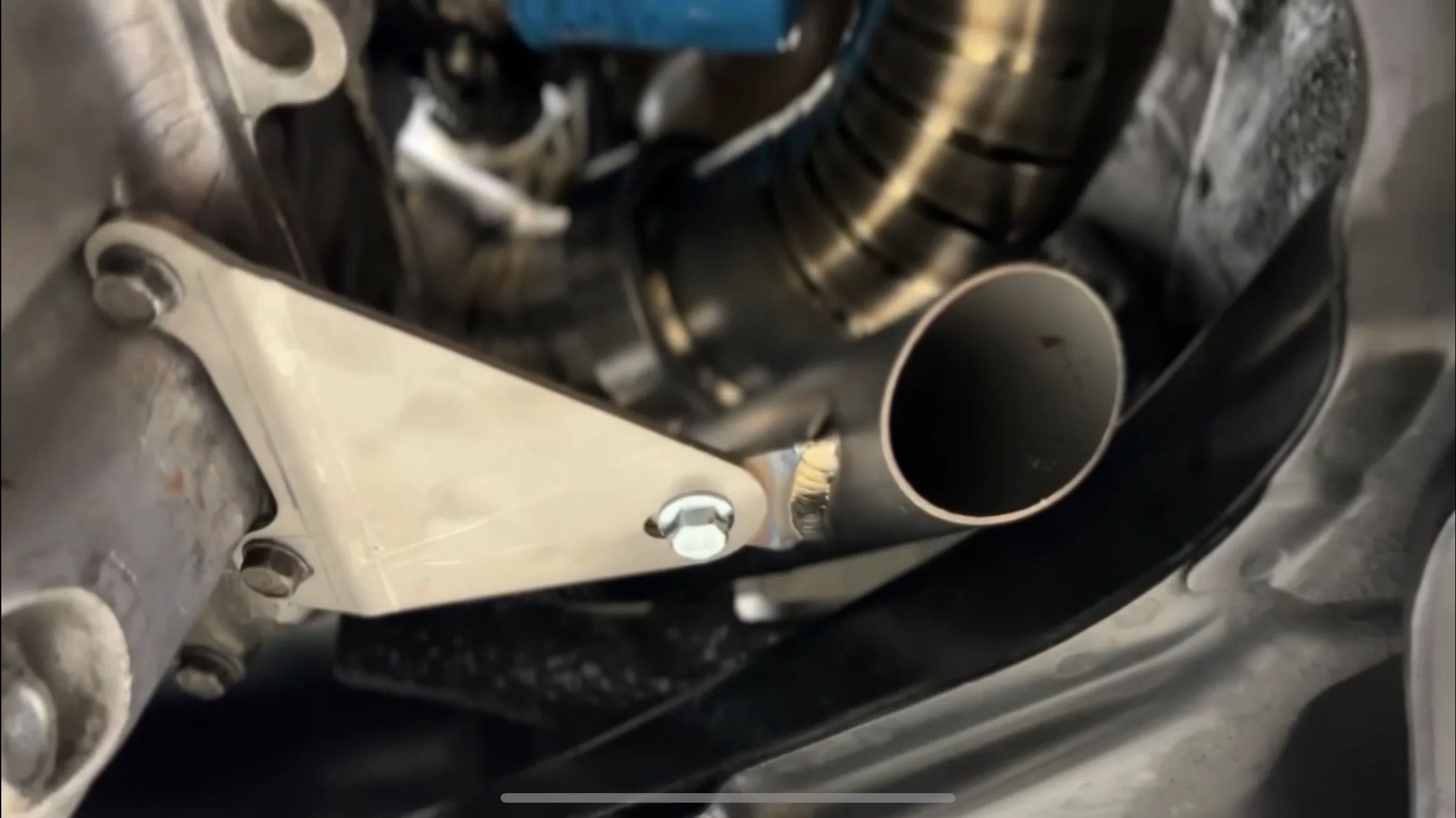

• All New - Titanium Pie Cut 1.75 inch Dump Tube

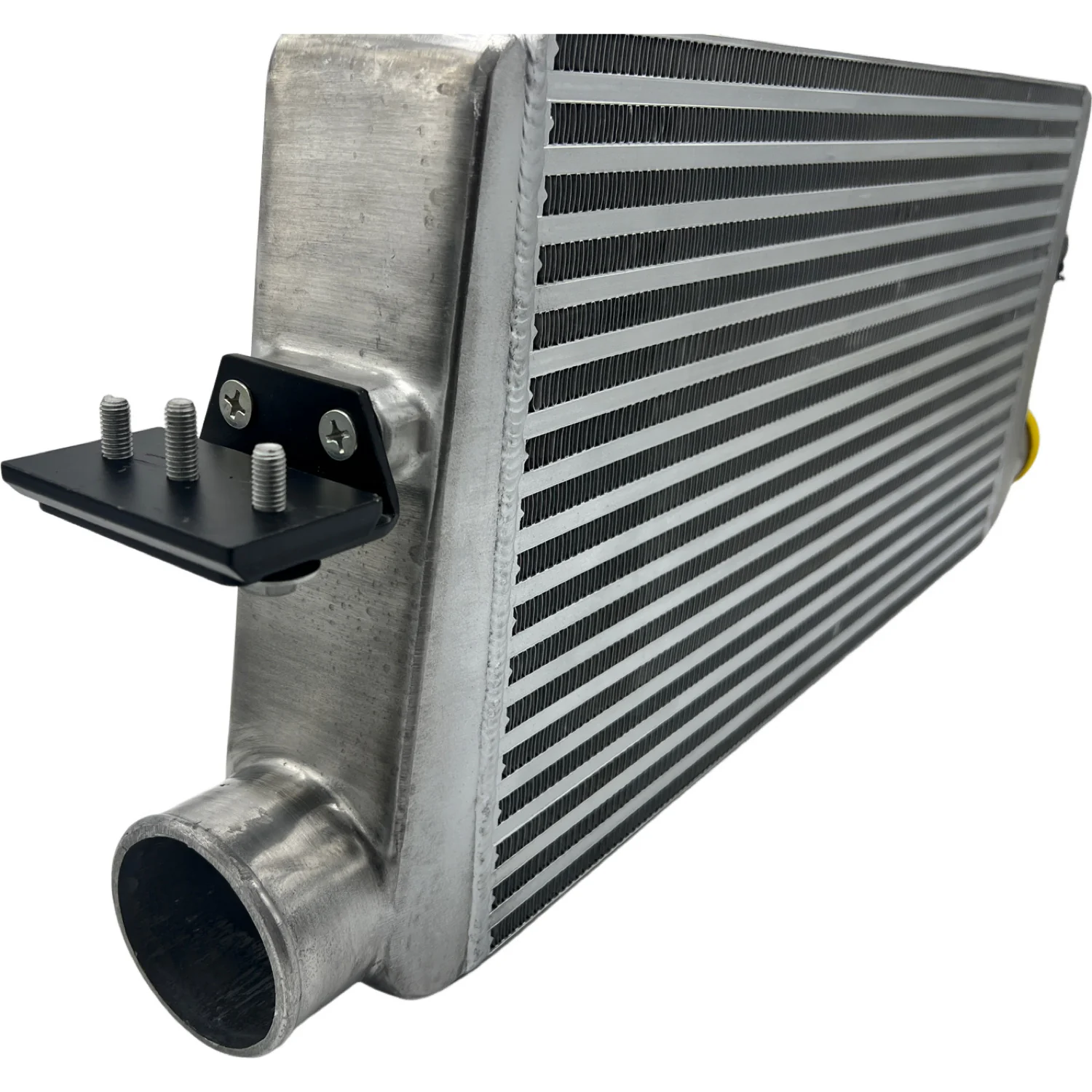

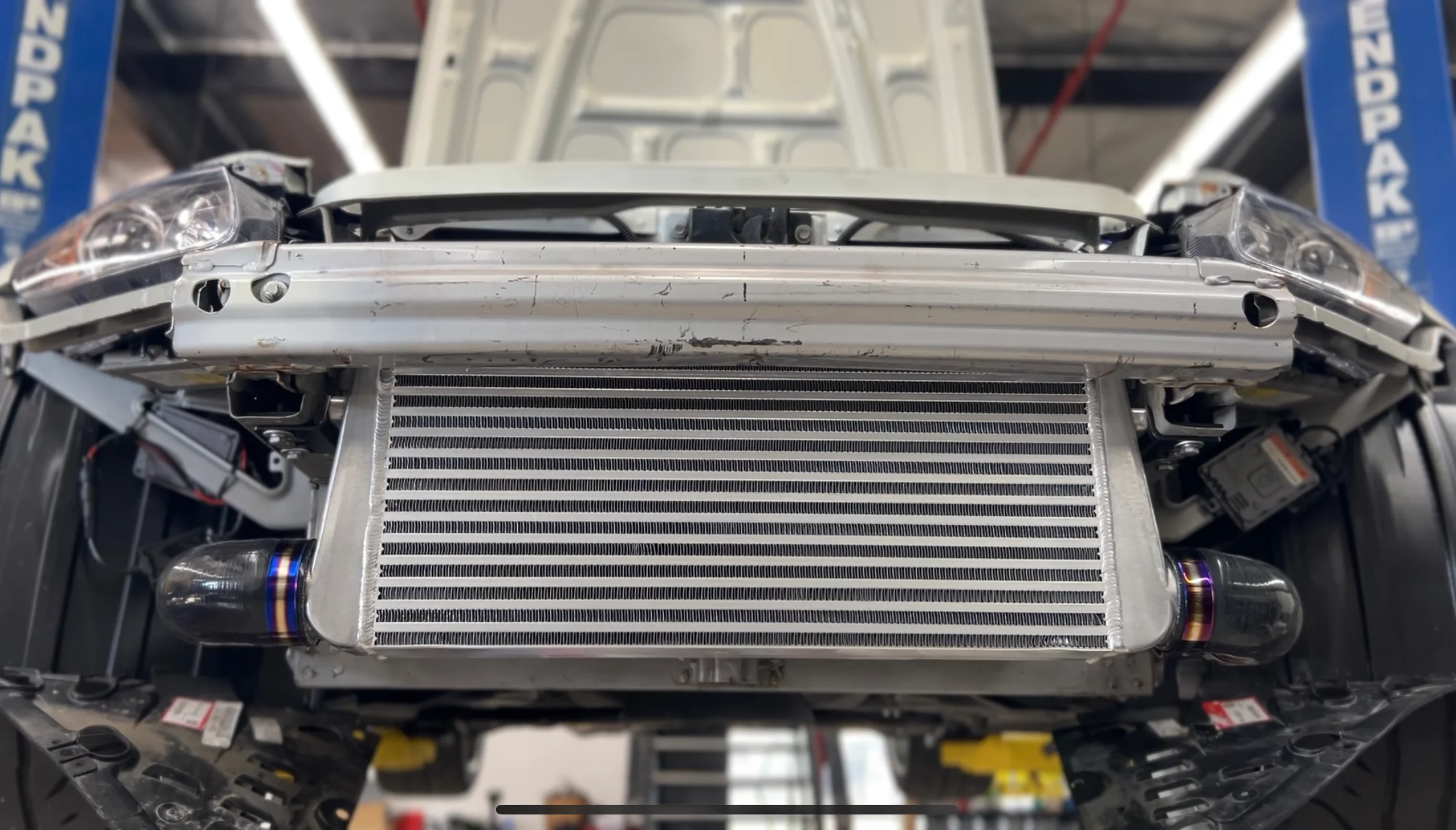

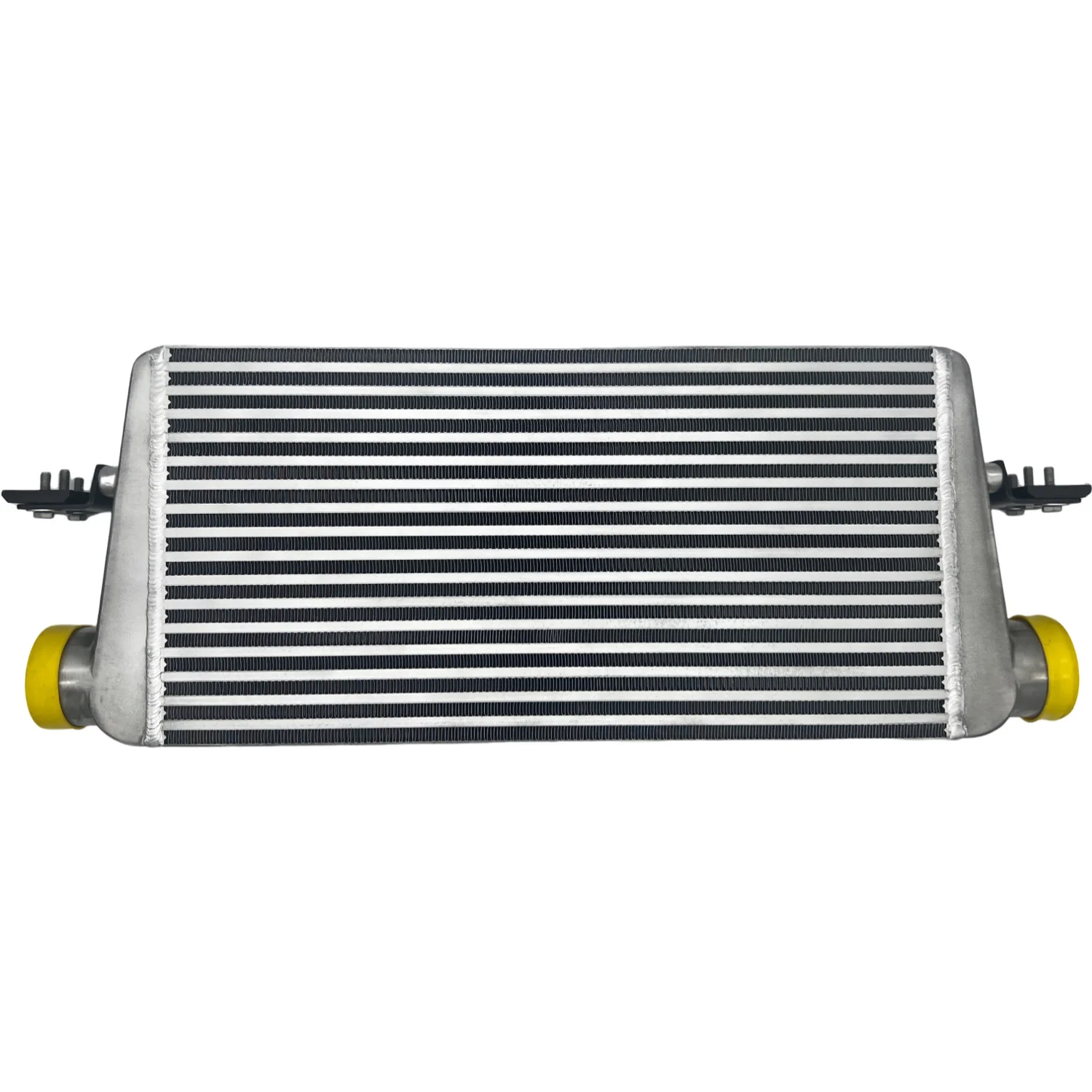

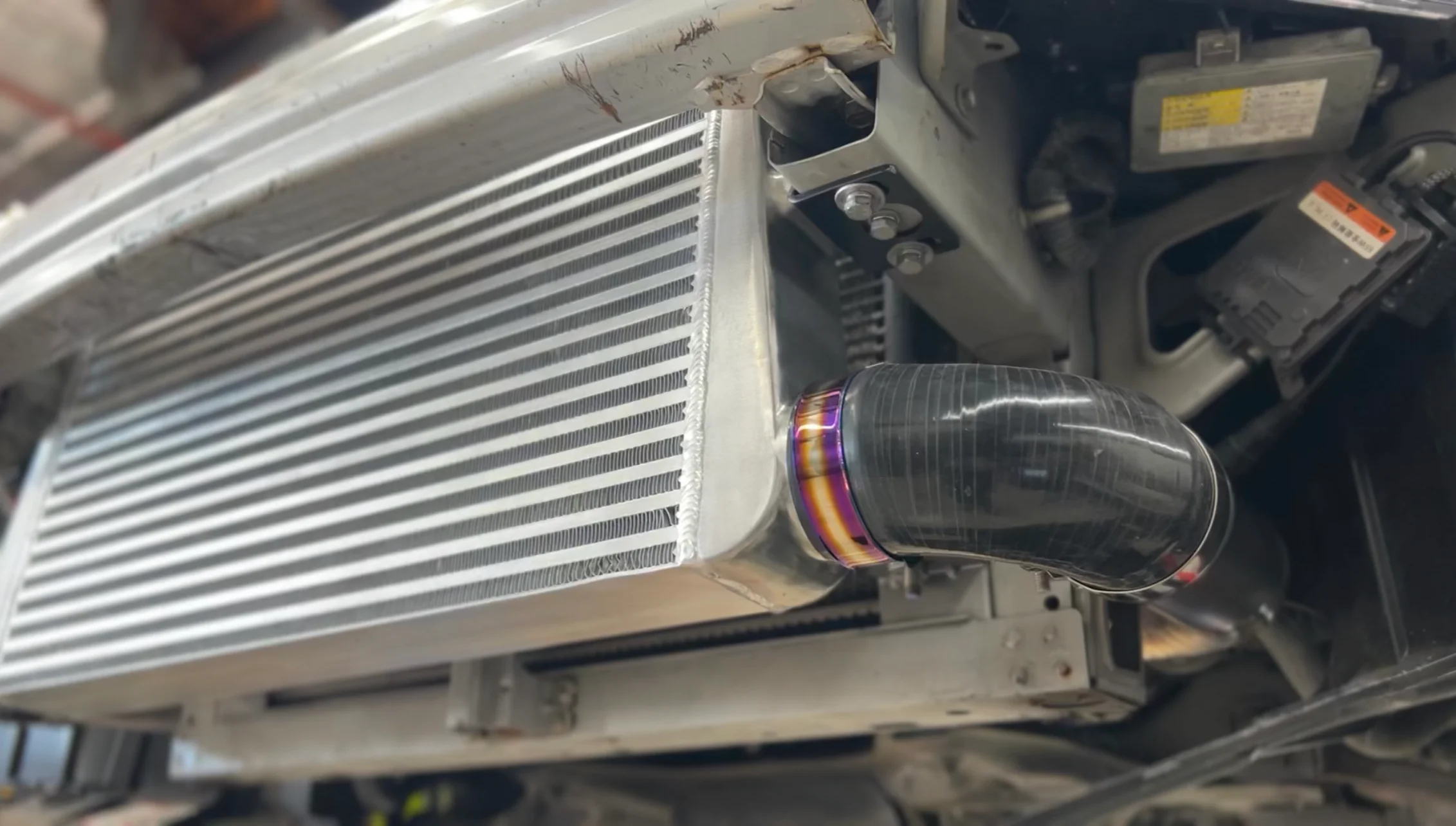

• Newly Revised - Intercooler Core Size: 24"x12"x3" (Now 8 Degrees Colder Air)

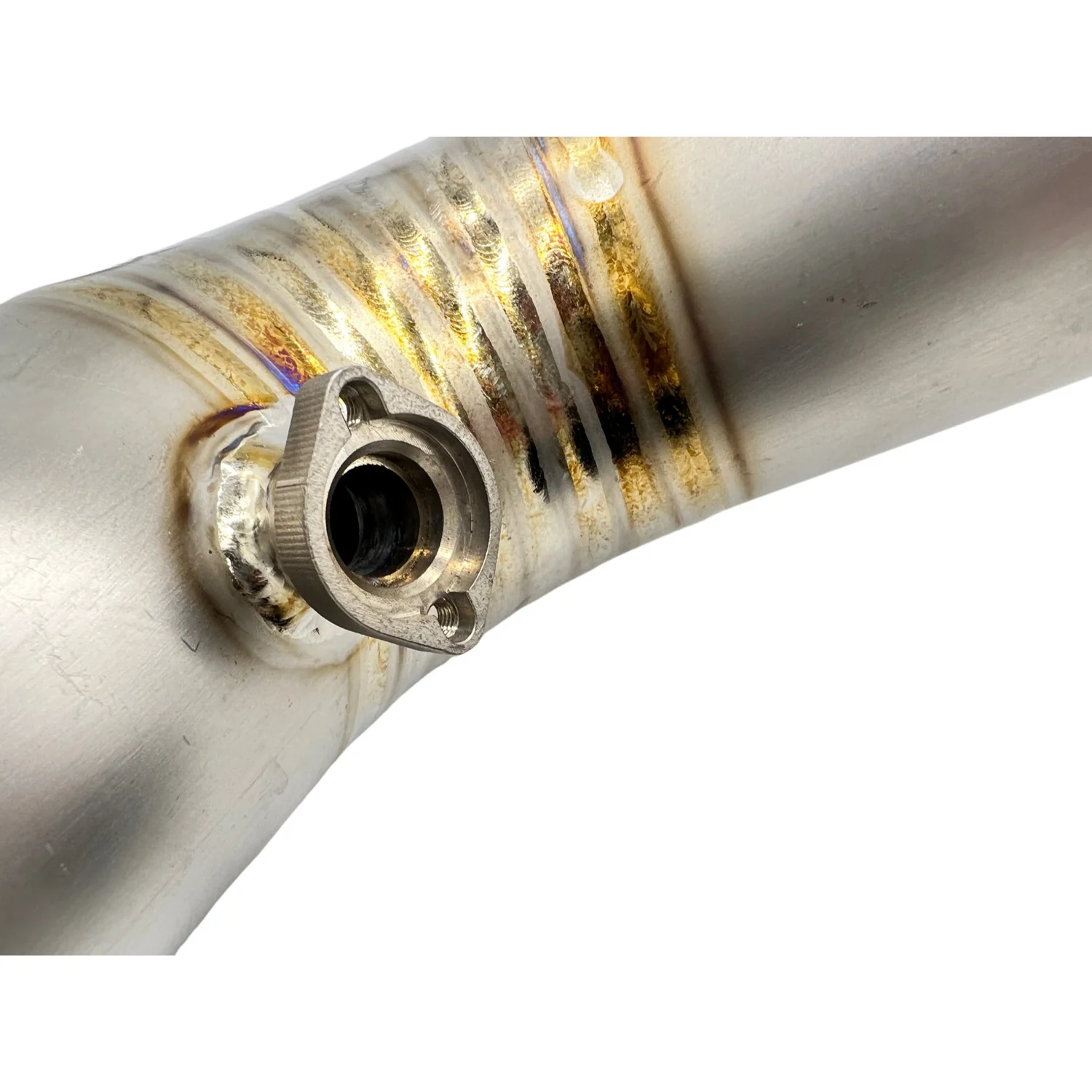

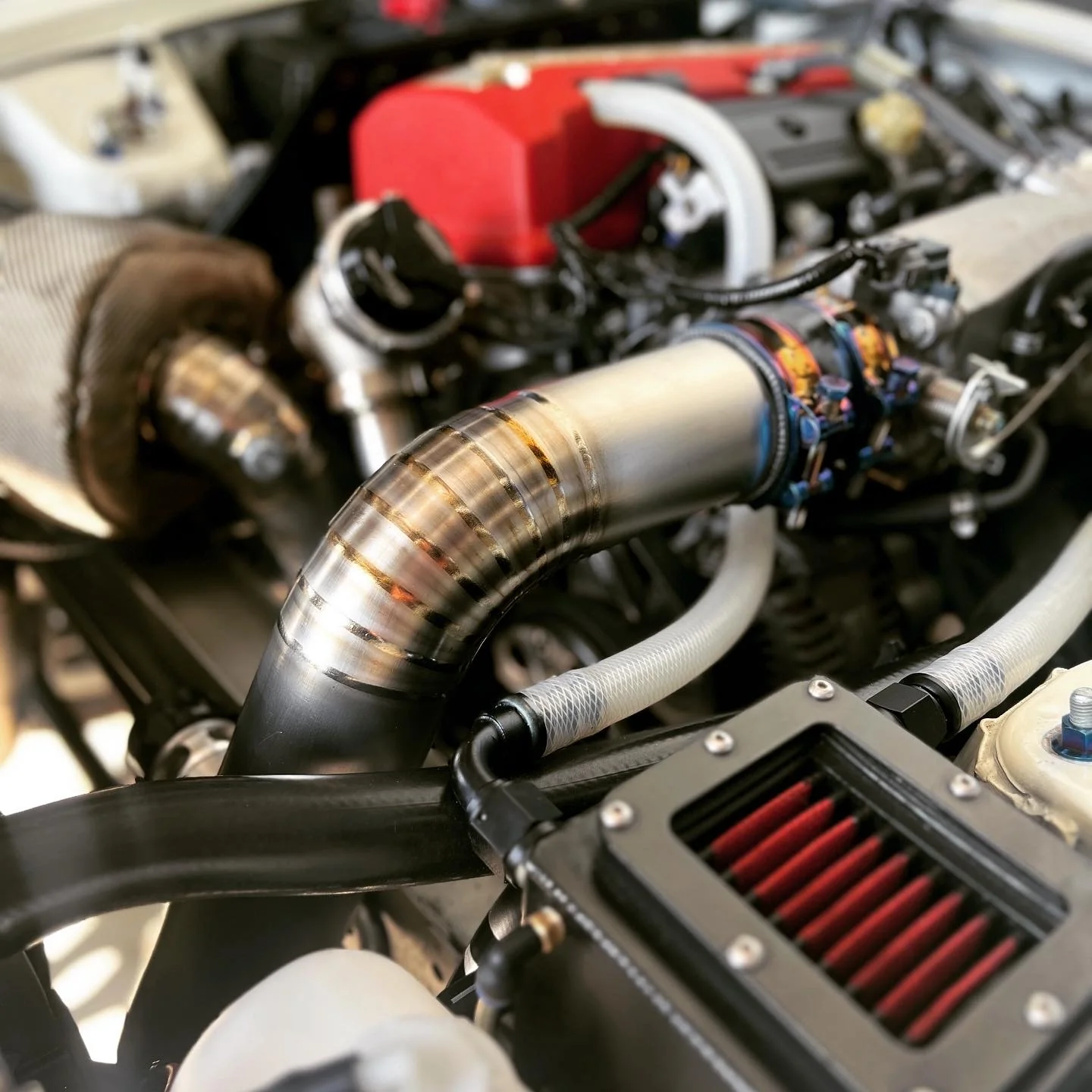

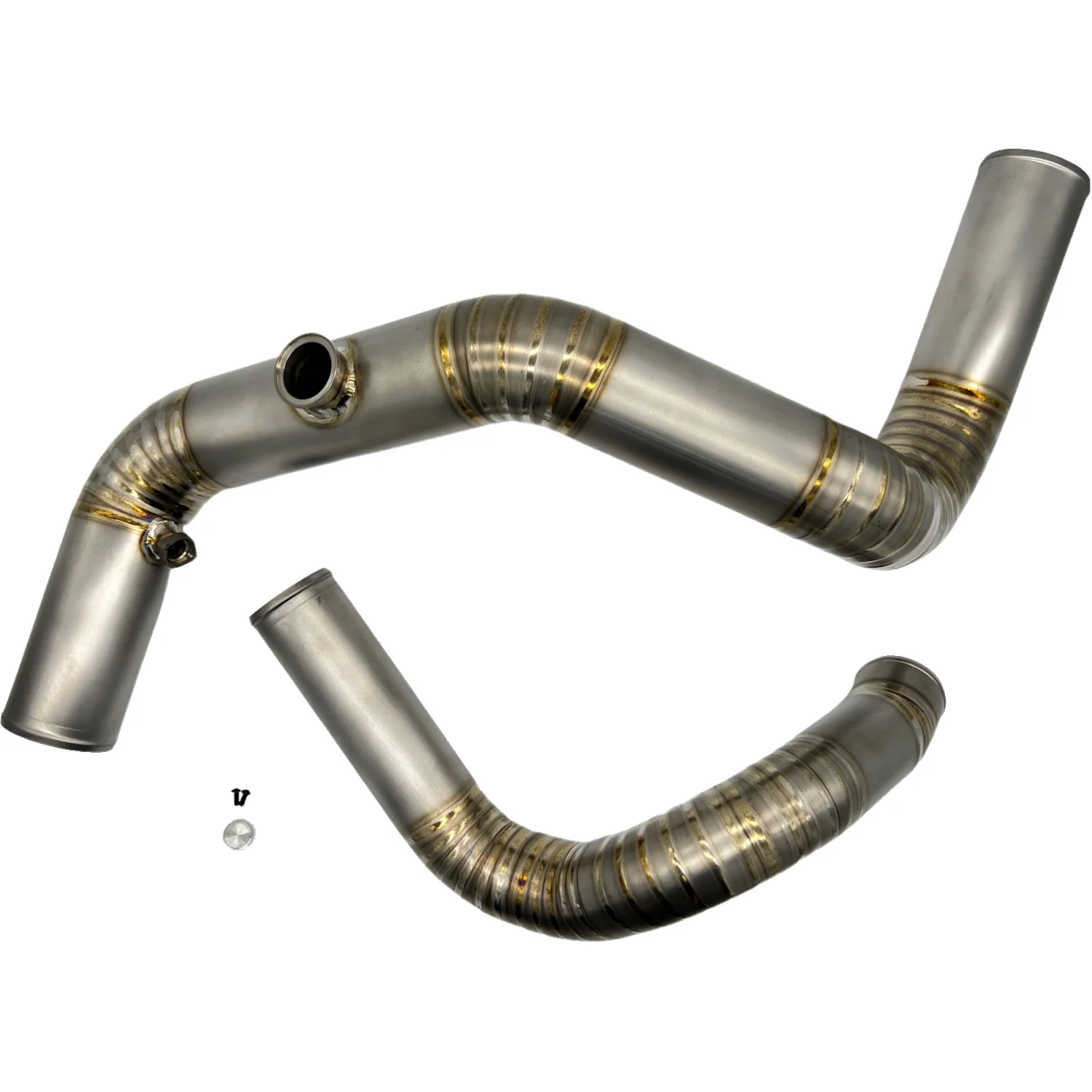

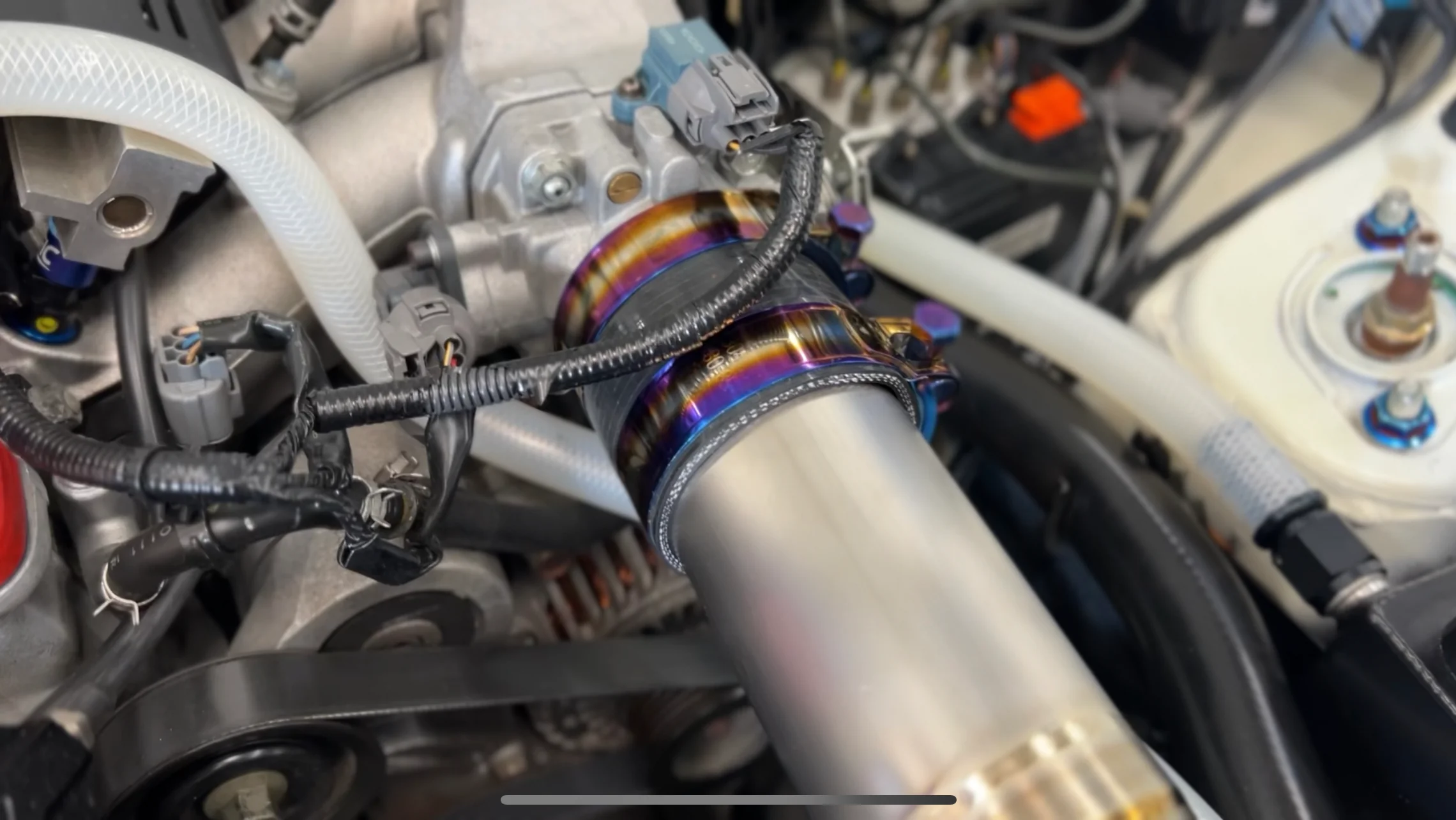

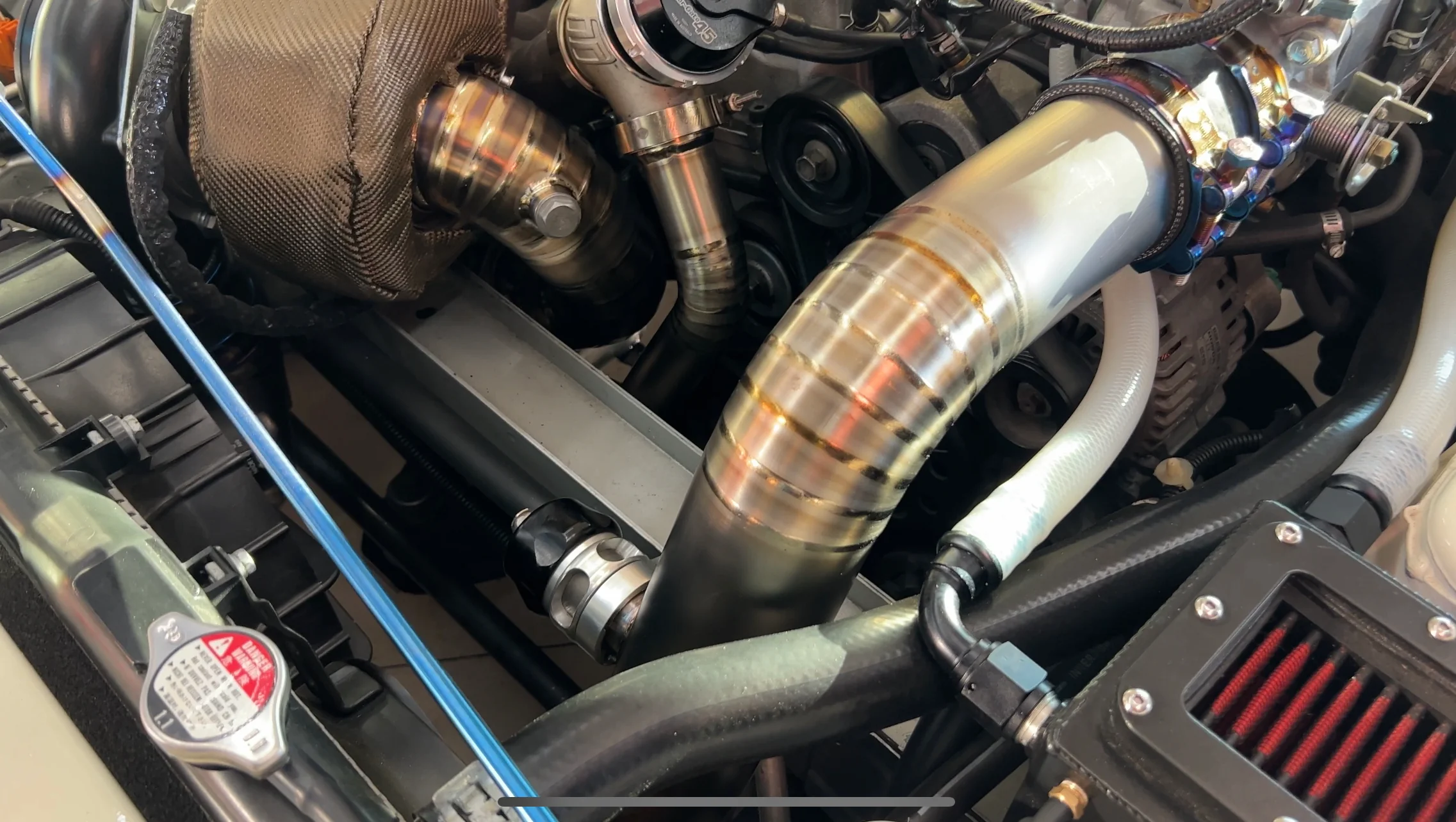

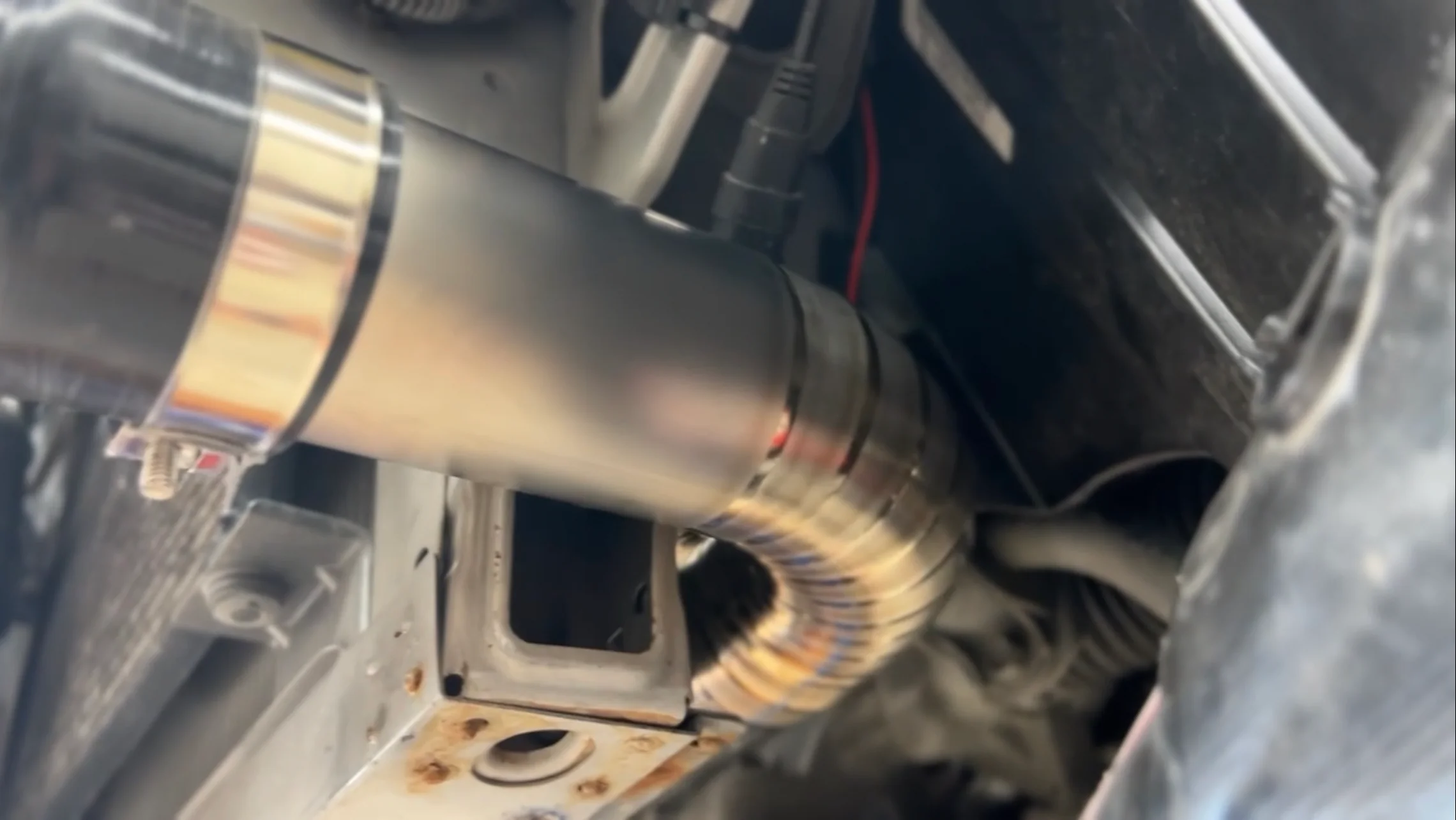

• All New - Titanium Pie Cut 2pc 3 Inch Left & Right Intercooler Pipes
• 3 inch Black Silicone Straight Coupler
• 2.5 inch Black Silicone Straight Coupler

• 3 inch 90 Degree Black Silicone Elbow Coupler
• 2.5 to 3 inch 90 Degree Black Silicone Elbow Reducer

• 2x - 3 inch V Band Clamps
• 5x - 3 inch Stainless Steel T-Bolt Clamps

• 3x - 2.5 inch Stainless Steel T-Bolt Clamps

• Replacement Front Engine Timing Cover w/ Welded AN10 for Oil Return
• 18 inch length AN10 Premium Nylon Race Hose Oil Return Line
• AN10 x 90 Degree Swivel Hose Fitting
• AN10 x 45 Degree Swivel Hose Fitting
• Fragola AN4 PFTE Black Oil Feed Hose
• 25mm ID x 32 inch Length High Temp Fire Hose Sleeve for Oil Return/Coolant Lines
• 10mm ID x 18 inch Length High Temp Fire Hose Sleeve for Oil Feed Line

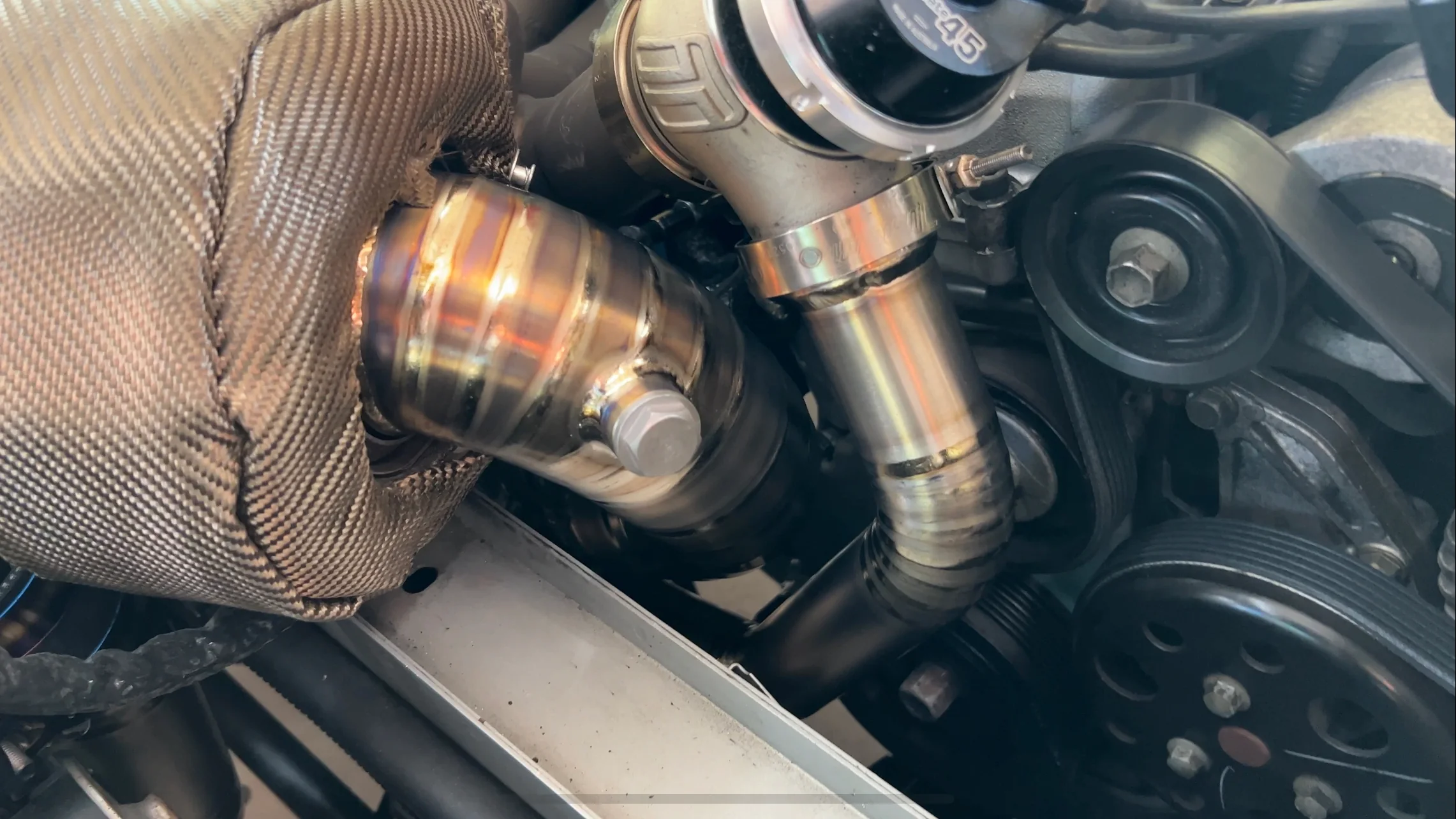

• T4 Turbo Blanket
• 4 inch Turbo Guard
• 50mm x 48 inch Length Gold Thermal Heat Barrier Tape
• Stainless Steel AN4to 1/8 NPT Fitting
• Stainless Steel 1/8 NPT to 1/8 NPT Fitting
• Stainless Steel Female T Fitting 1/8 NPT
• 6061 Aluminum AN10 Turbo Oil Drain Flange Fitting
• ¼ inch x 36 inch length Vacuum Rubber Black Hose
• 3 inch Donut Exhaust Down pipe Gasket

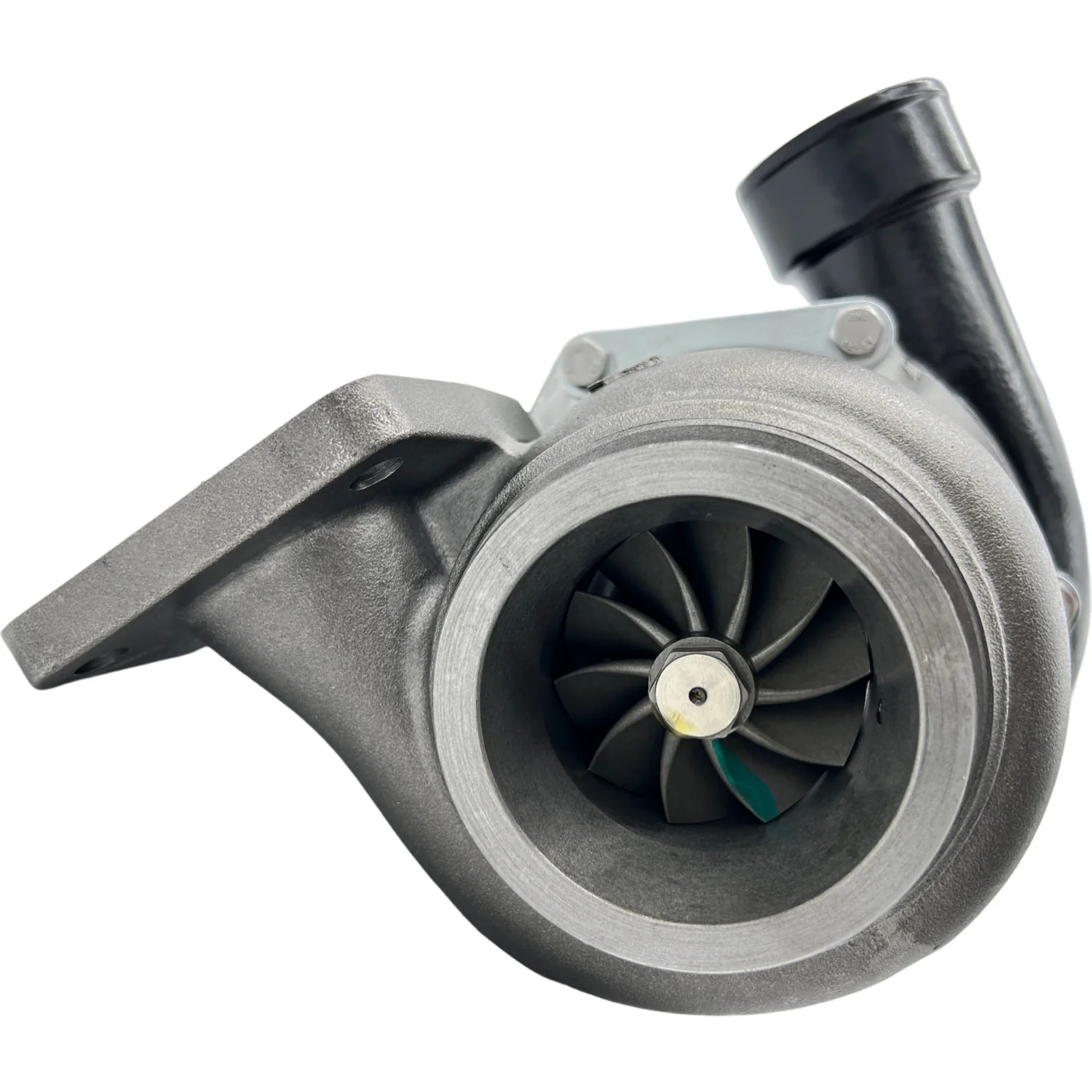

Ballade GT35 Turbo Specs:

• 4" Air Inlet, 2.5" Compressed Air Outlet
• Standard T4 Turbine Housing Flange
• 3" Vband Exhaust Outlet
• Ball Bearing Turbo
• Oil and Water Cooled
• .70 A/R Compressor
• .68 A/R Turbine

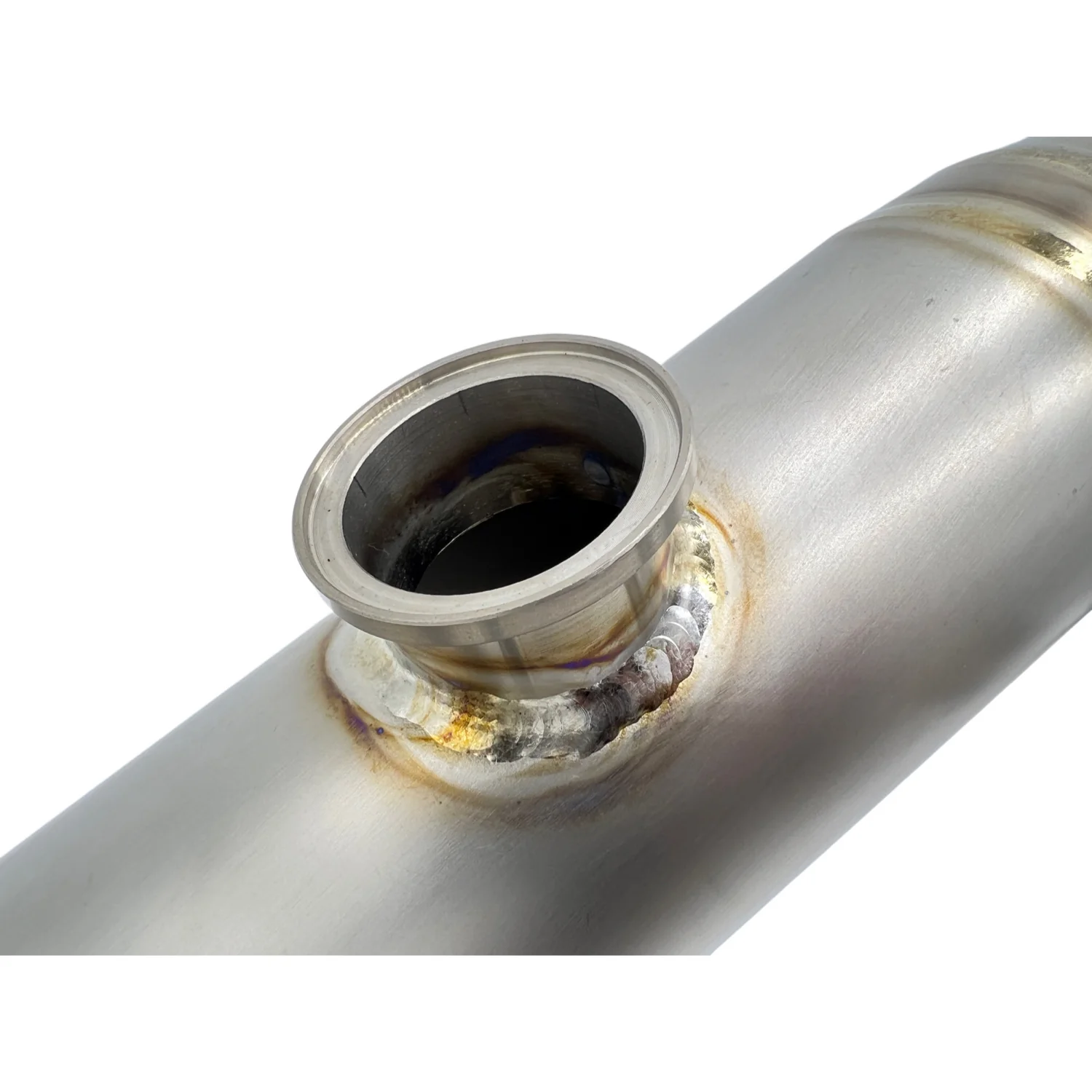

• 46mm Vband Wastegate
• Optional GARRETT GBC35-700 Available!! Click Link To Add

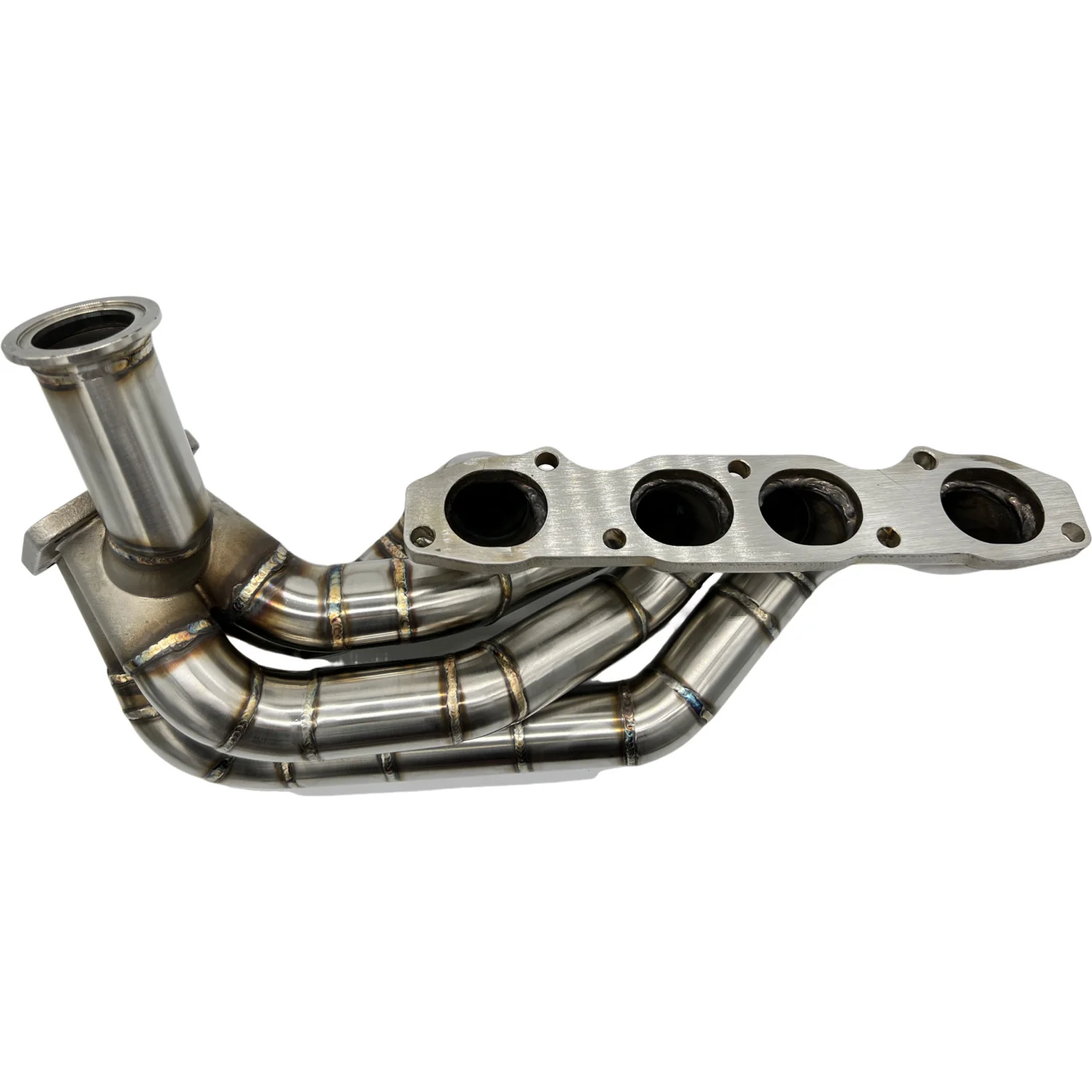

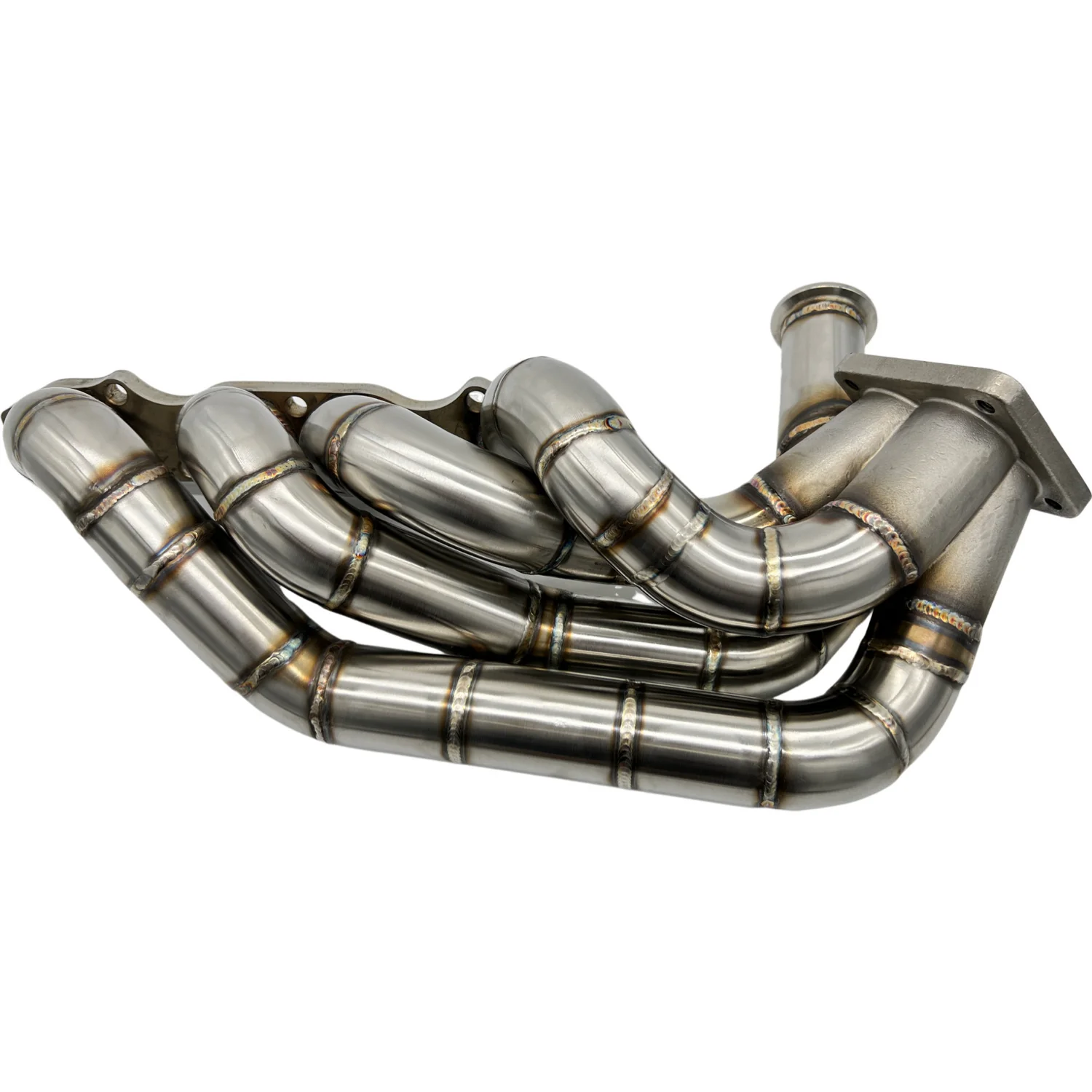

Turbo Manifold Specs:

• 321 Stainless Steel Titanium Material
• 11 Gauge Thick Wall
• T4 Turbo Flange
• 46mm Wastegate Vband Flange

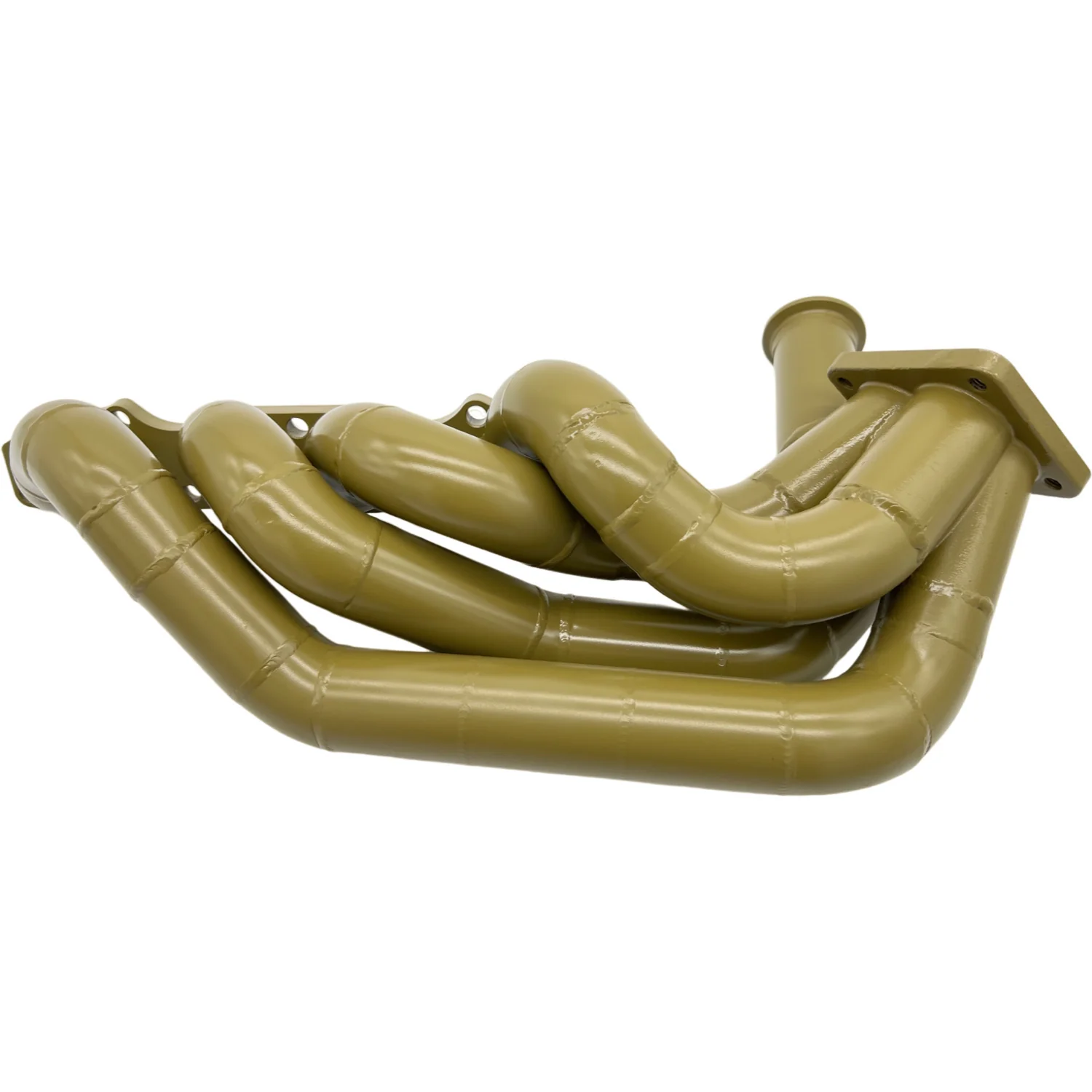

• Optional Bronze Ceramic Coated

Not Included, but needed to complete:

• Upgraded injectors x4
• Upgraded In tank fuel pump
• ECU Management Example: Hondata Kpro/Flashpro, Haltec, AEM etc.
• (Optional) Boost solenoid
• (Optional) Upgraded 4 bar map sensor. Stock map sensor 10psi only.

Recommendations:

• ID1050cc Injectors:
• https://balladesports.com/products/injector-dynamics-00-09-honda-s2000-injector-set-00-05-s2000-1050cc?_pos=1&_sid=e524ffc7c&_ss=r
• Walbro Fuel Pump
• https://balladesports.com/products/walbro-255lph-hp-fuel-pump-gss-342?_pos=1&_sid=ddf7decb5&_ss=r
• Ballade Kpro PnP Harness
• https://balladesports.com/collections/tuning/products/hondata-00-05-s2000-kpro-plug-and-play-no-sensor-conversion
• Hondata Kpro
• https://balladesports.com/collections/tuning/products/hondata-kpro-ecu
• Hondata Flashpro
• https://balladesports.com/products/hondata-2006-s2000-flashpro?_pos=1&_sid=e83654e56&_ss=r
• Highly recommend removal of air pump in the lower bumper
