Ballade Sports K Swap RWD AC Adapter Kit

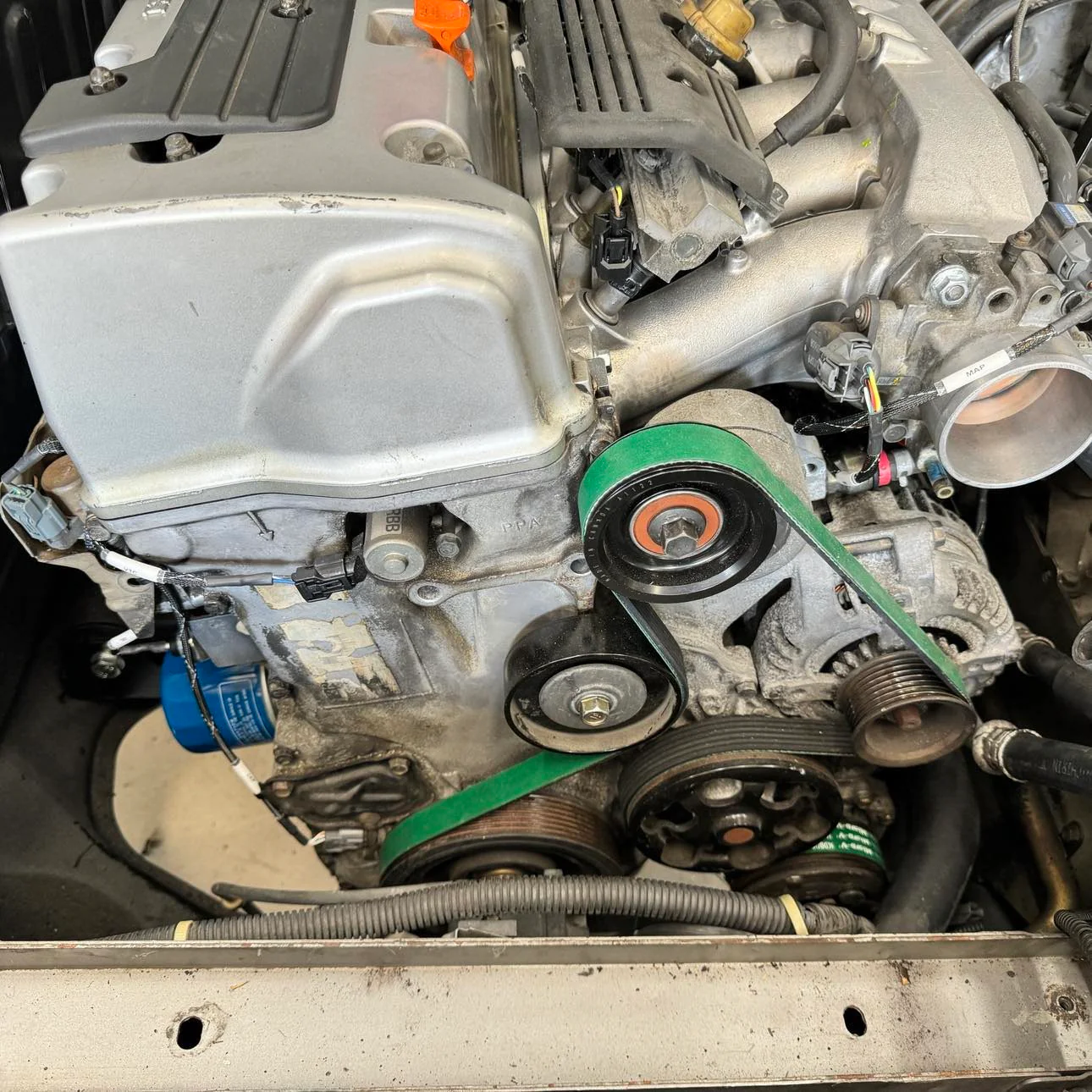

Ballade Sports K Swap RWD AC Adapter Kit is an all NEW system to add Air Conditioning to your RWD K swapped vehicle.  Originally designed to add to our K Swap RWD S2000 set up, we have made this practically universal for all RWD K Swapped Vehicles.

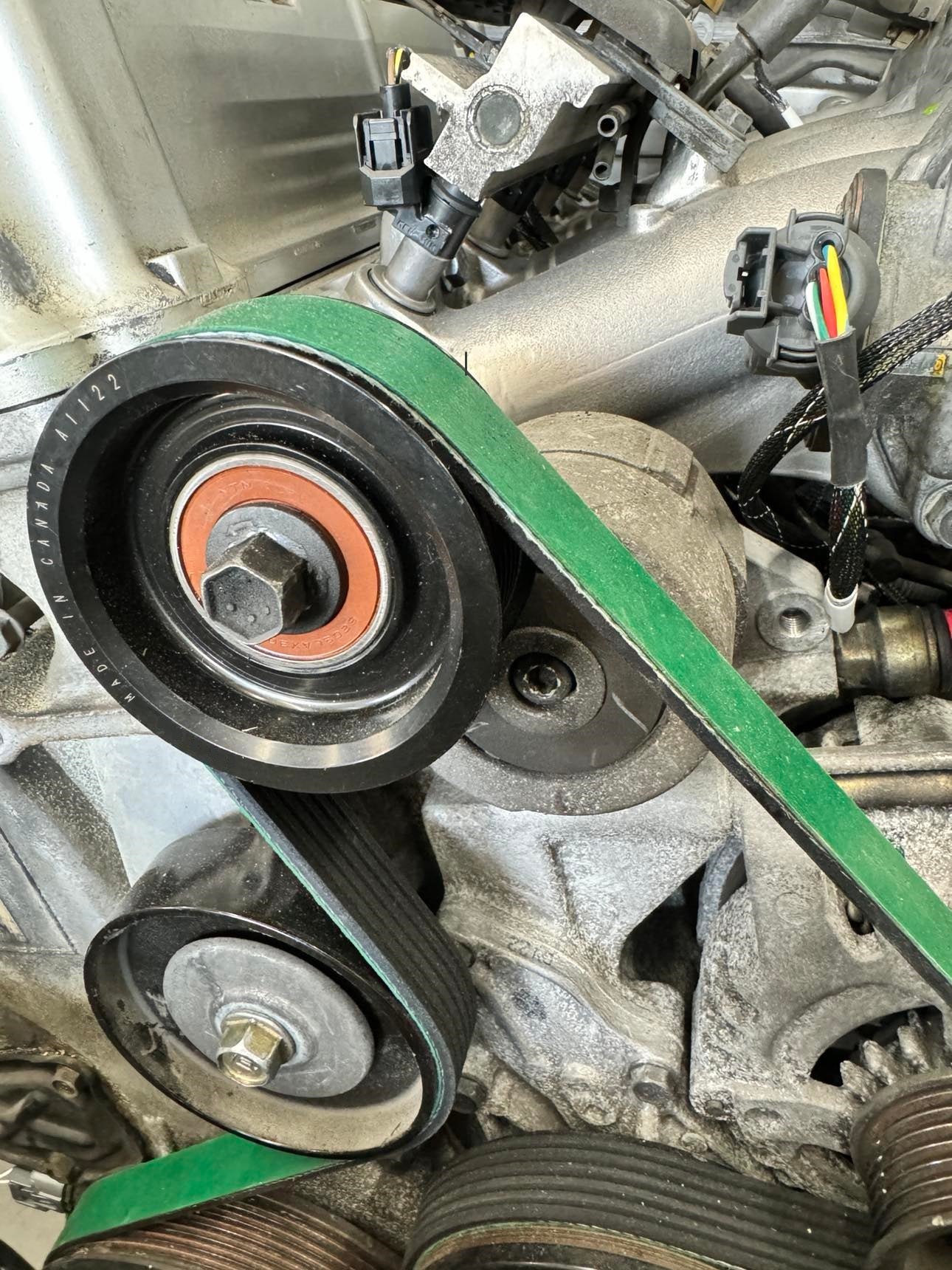

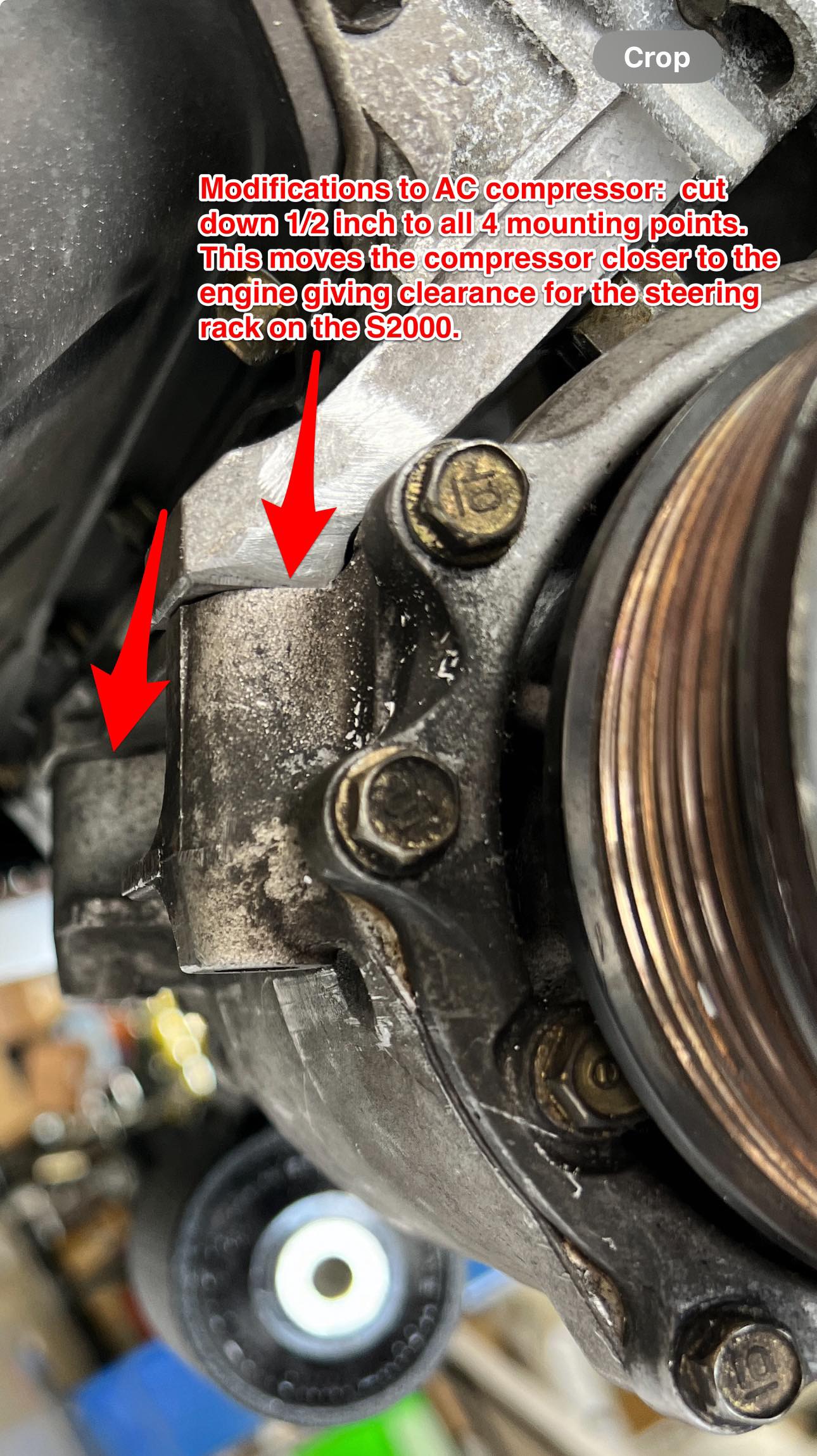

You can now use your own self provided K20a2 AC compressor along with this kit to mount to your K20 or K24 swapped vehicle.  Slight modification to the AC compressor is needed.  We mill off 1/2 inch to the 4 bolt mounts on the compressor making it mount closer to the engine for more clearance for the steering rack on the S2000 chassis.  This kit re-arranges the belt system in which we recommend using a F20c S2000 belt tensioner mechanism.

Note: Another bonus with our AC kit is if you’ve done a k swap before you may notice we no longer need to have EP3 pulley delete system. This kit can save you the cost and give more belt clearance next to the intake pipe/throttle body.

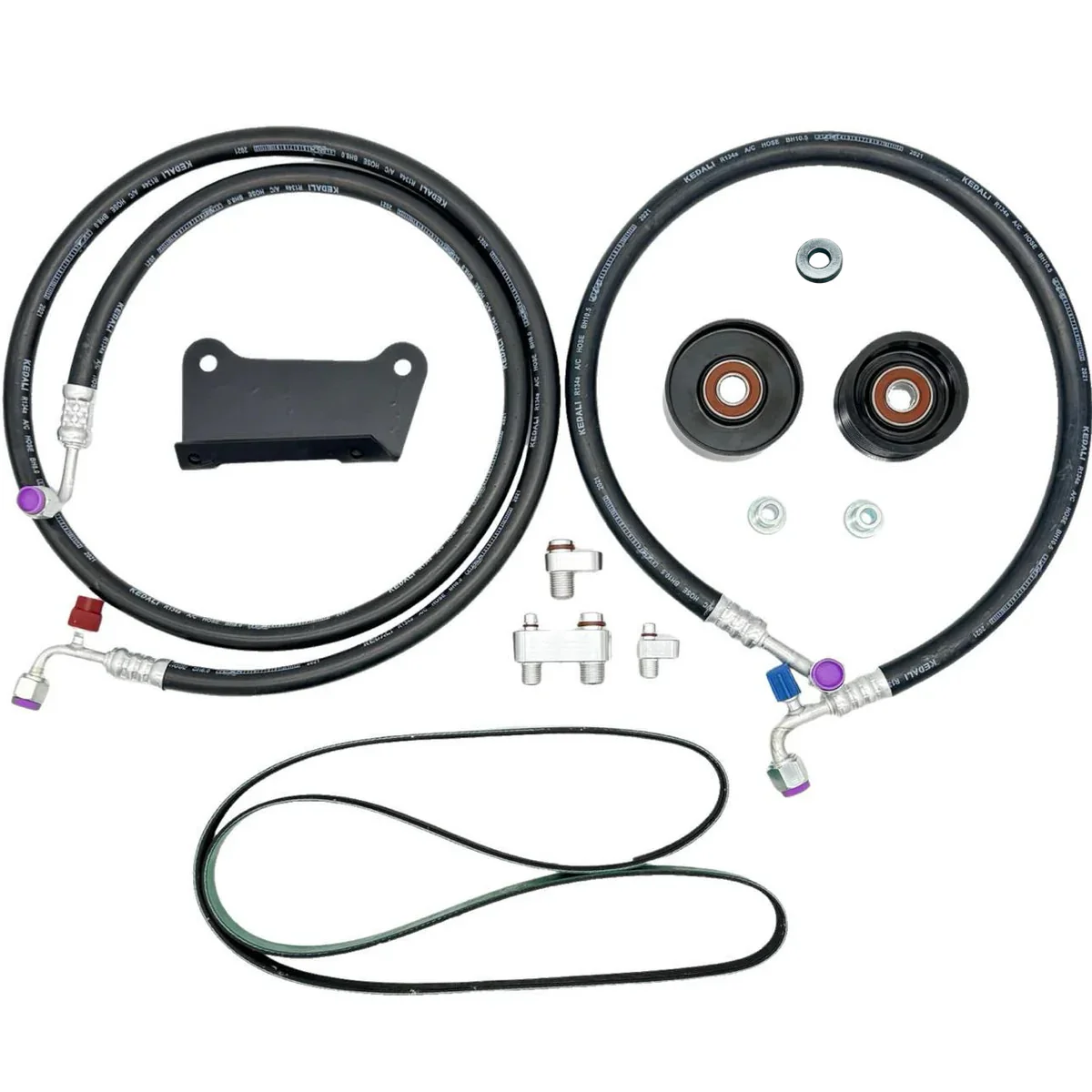

Includes:

• 1 Steel Mounting Bracket
• 2 idler pulleys
• 2 idler pulley bushings
• 2 AC hoses
• 3 6061 aluminum fittings
• 1 New Gates HD Drive Serpentine Belt K060637HD
• Bolt Hardware Included

Needed Parts:

k20a2 AC compressor

F20c/F22c Belt Tensioner

NOTE:  This kit is built around OEM Crank Pulley.  We have had some feedback from users with ATI Damper Pulley a different belt size.  Please email us prior to purchase online if you are running an aftermarket Crank Pulley.
